Product Description

Datasheet

Model: SH15-DS30
Power 2*5W
Input voltage DC48V/DC24V
Output voltage DC 125mA
CRI ≥90
Temperature 2700K/3000K/3500K/4000K
Beam angle 24°/36°
Luminous flux 661 lm
UGR <19
Size 150*φ22*48mm
Cut /
Material Aluminum
Finish White/Black/Golden
Installation Track
Control On/off；
IP Rating IP20
Warranty Three years



Packing  Datasheet

Model SH15-DS30
Packaging unit Inner box Outer box
Quantity 1pcs 20pcs
Dimension 190*95*60mm 395*205*325mm
Volume 1.08dm³ 26.3dm³



ORDERING CODE

Family Name Luminaire Type Power CRI CCT Beam Agnle Color Control Remarks
SH -15 series SP20 3W 90 27 24 W N
      90:Ra90    95:Ra95 97:Ra97 27:2700K  24:24°    36:36°  White N:ON/OFF
30:3000K Black
35:3500K Golden
40:4000K
CT:2700K-4000K

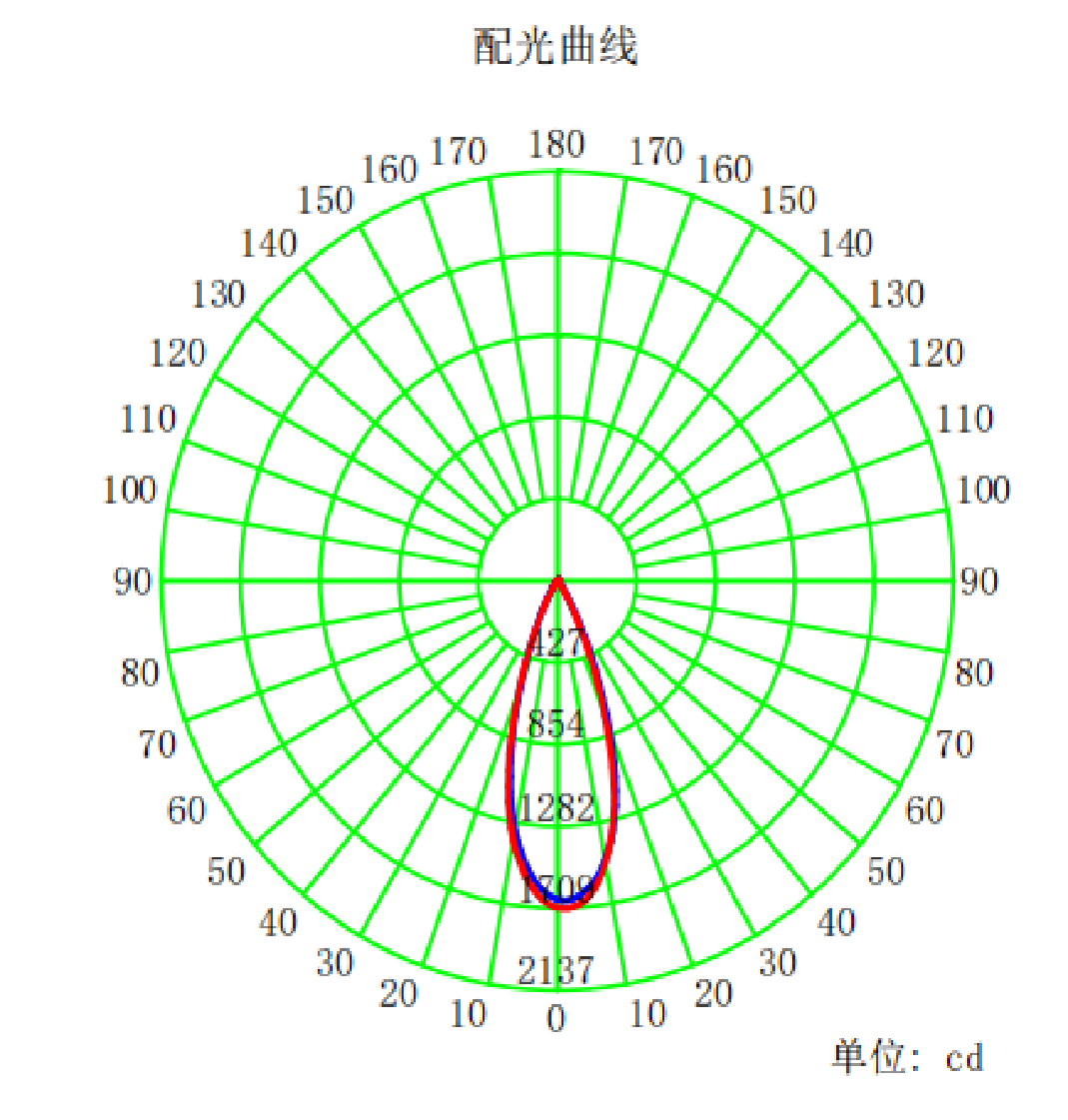

Distribution；LUX Diagram

3000K CRI≥90
36°

Magnetic SH15-DS30

Lamp body cover with high purity 6063 aluminum profile, through the hot extrusion process molding, high thermal conductivity, can effectively reduce the LED light decline, prolong the life of the whole lamp.
Product Categories: Light
Keywords: SHIHONG LIGHT
