Magnetic Track Light

Down Light

Surface Down Light

Elbow downlights

Smart Control Panel

  • Magnetic lamp SH15-CG12
  • Magnetic lamp SH15-CG12
  • Magnetic lamp SH15-CG12
  • Magnetic lamp SH15-CG12
Magnetic lamp SH15-CG12
Magnetic lamp SH15-CG12
Magnetic lamp SH15-CG12
Magnetic lamp SH15-CG12
+

Product Description

Datasheet

Model: SH15-CG12
Power 12W
Input voltage DC48V/24V
Output voltage DC 250mA
CRI ≥90
Temperature 2700K/3000K/3500K/4000K
Beam angle 24°/36°
Luminous flux 266lm~400lm
UGR <19
Size 600*15*15mm
Cut /
Material Aluminum
Finish White/Black/Golden
Installation Track
Control On/off；
IP Rating IP20
Warranty Three years



Packing  Datasheet

Model SH15-CG12
Packaging unit Inner box Outer box
Quantity 1pcs 30pcs
Dimension 64*14.5*15.5cm 65*29.5*21cm
Volume 0.92dm³ 34dm³



ORDERING CODE

Family Name Luminaire Type Power CRI CCT Beam Agnle Color Control Remarks
SH15 series CG06 6W 90 27 24 W N
      90:Ra90    95:Ra95 97:Ra97 27:2700K   24:24°
36:36° 		 White N:ON/OFF
30:3000K Black
35:3500K Golden
40:4000K
CT:2700K-4000K

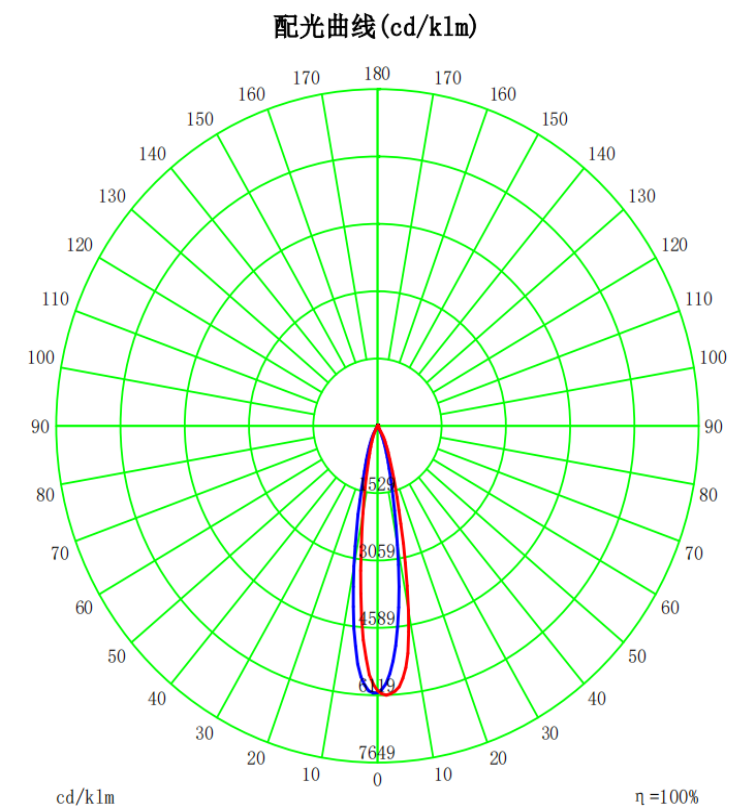

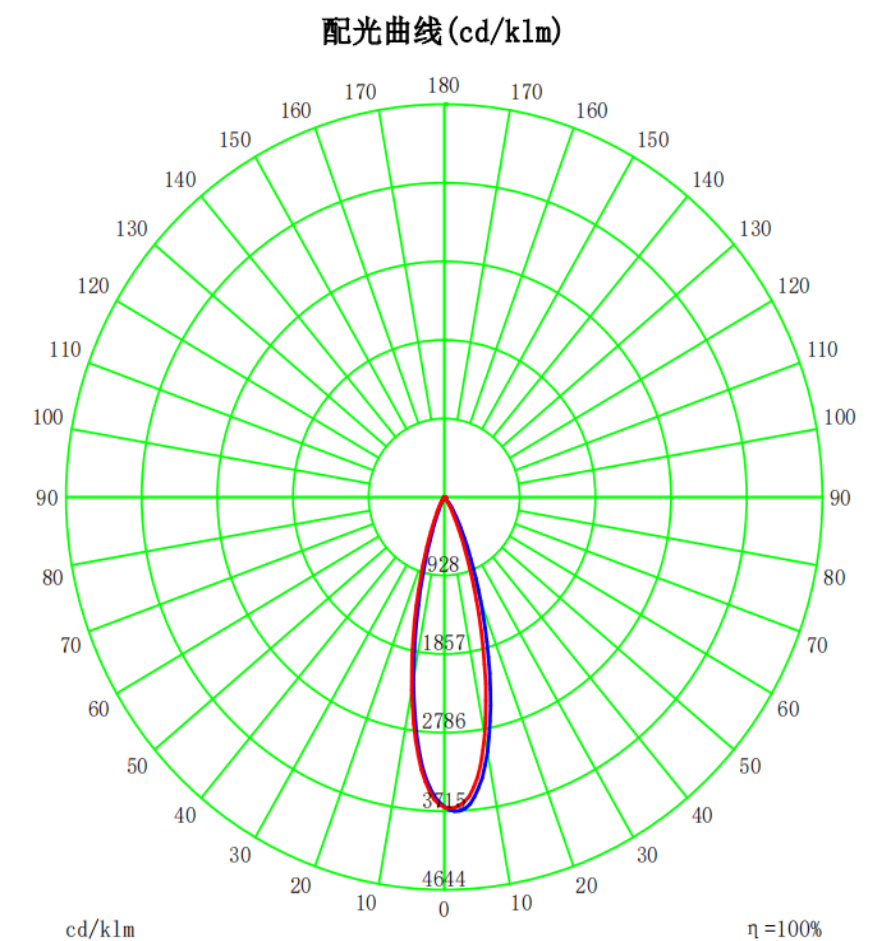

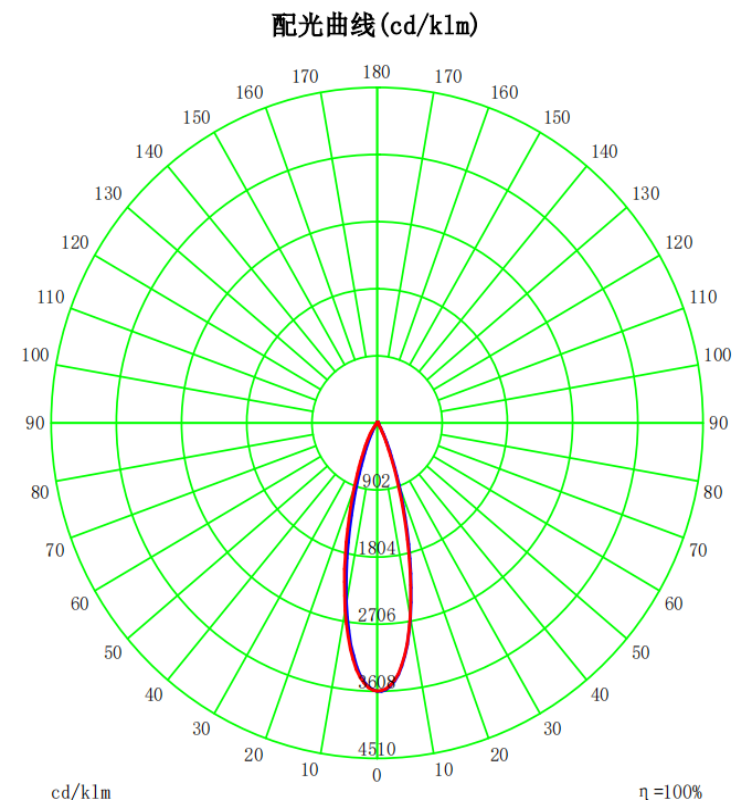

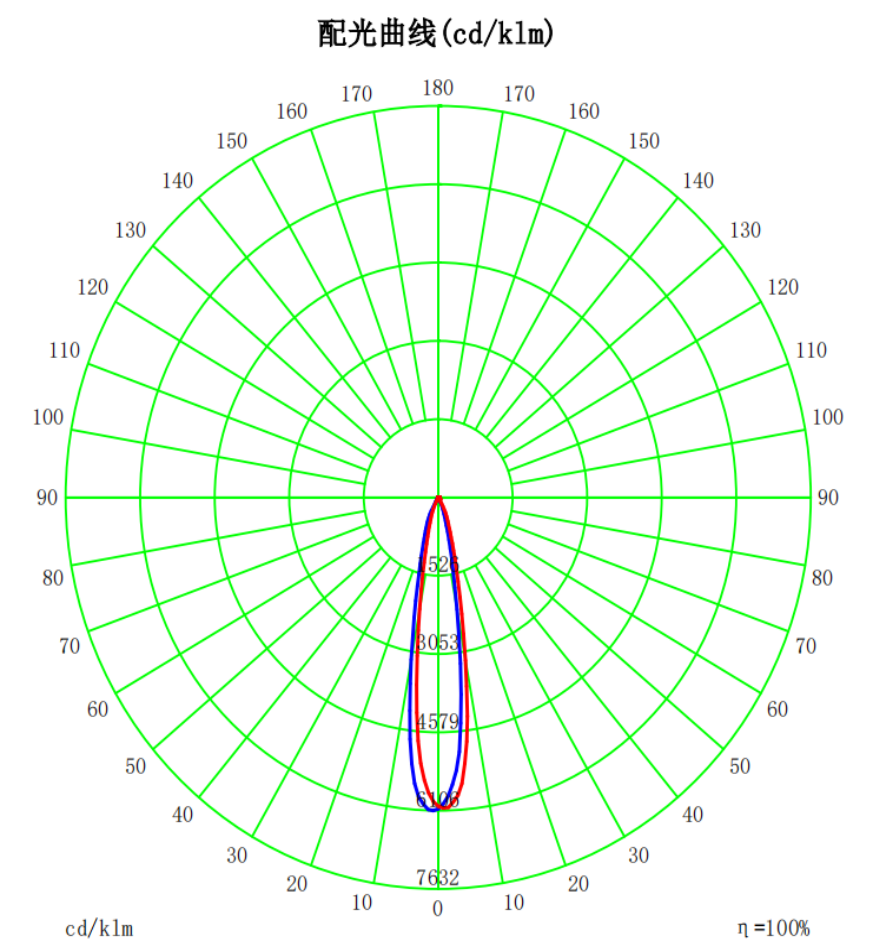

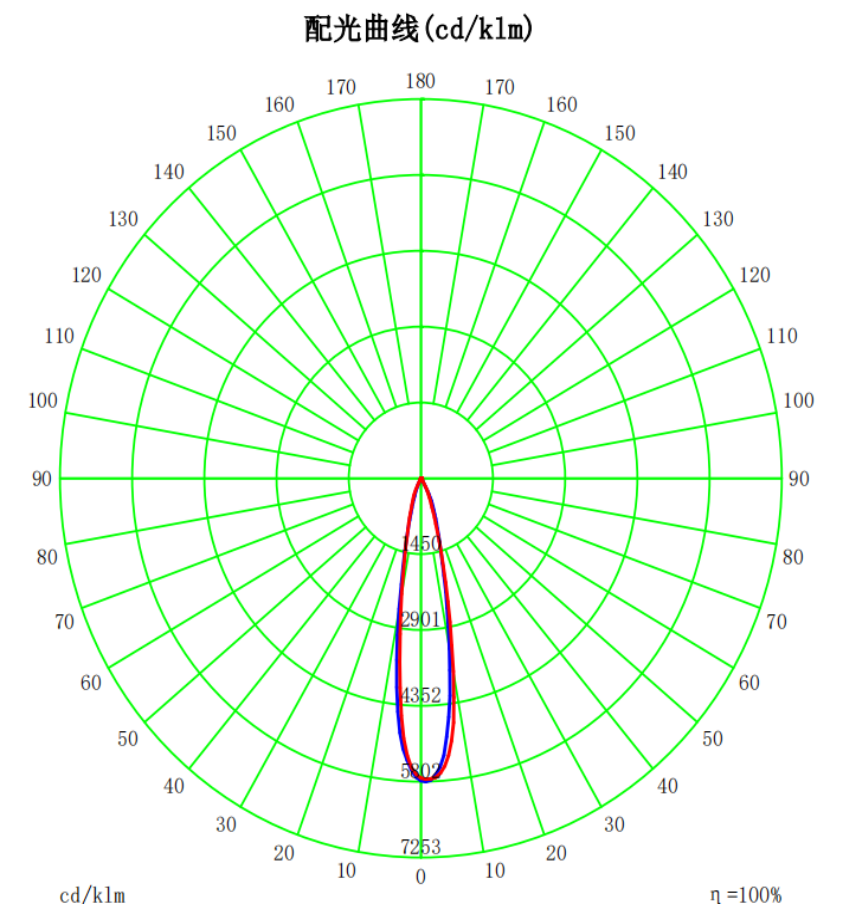

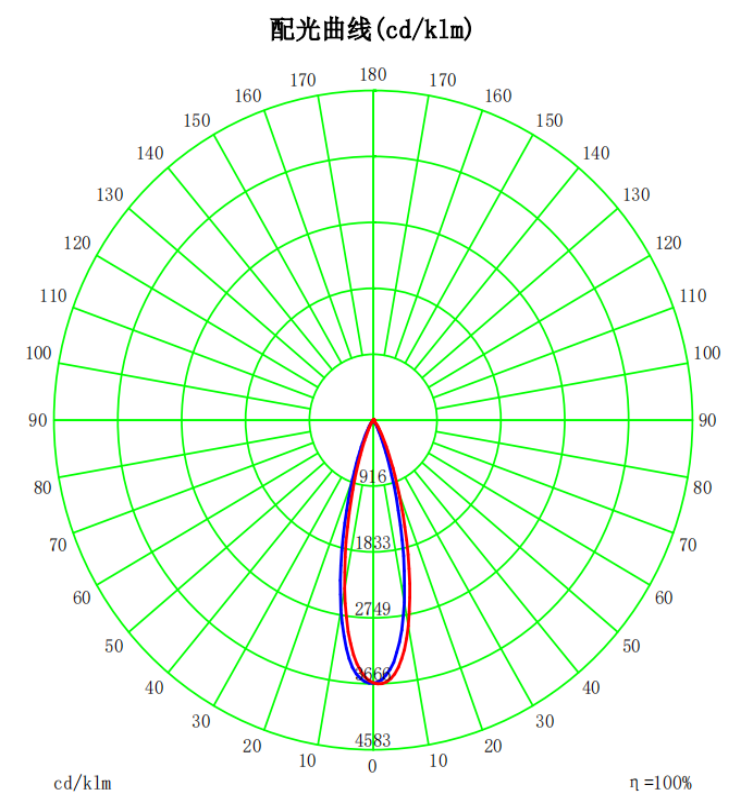

Distribution；LUX Diagram

2700K CRI≥90
24° 36°



3000k  CRI≥90
24° 36°



3500k CRI≥90
24° 36°



4000k  CRI≥90
24° 36°

Magnetic lamp SH15-CG12

Lamp body cover with high purity 6063 aluminum profile, through the hot extrusion process molding, high thermal conductivity, can effectively reduce the LED light decline, prolong the life of the whole lamp.
