Product Description

Datasheet

Model: SH15-GO08
Power 8W
Input voltage DC24V
Output voltage DC 330mA
CRI ≥90
Temperature 2700K/3000K/3500K/4000K
Beam angle 36°
Luminous flux 359lm~418lm
UGR <19
Size 110*16*35mm
Cut /
Material Aluminum
Finish White/Black/Golden
Installation Track
Control On/off；
IP Rating IP20
Warranty Three years



Packing  Datasheet

Model SH15-GO08
Packaging unit Inner box Outer box
Quantity 1pcs 20pcs
Dimension 69*42*143mm 440*160*165mm
Volume 0.41dm³ 11.6dm³



ORDERING CODE

Family Name Luminaire Type Power CRI CCT Beam Agnle Color Control Remarks
M15 SERIES GO08 8W 90 30 36 W N
      90:Ra90    95:Ra95 97:Ra97 30:3000K   36:36°  White N:ON/OFF
35:3500K Black
40:4000K Golden
CT:3000K-4000K

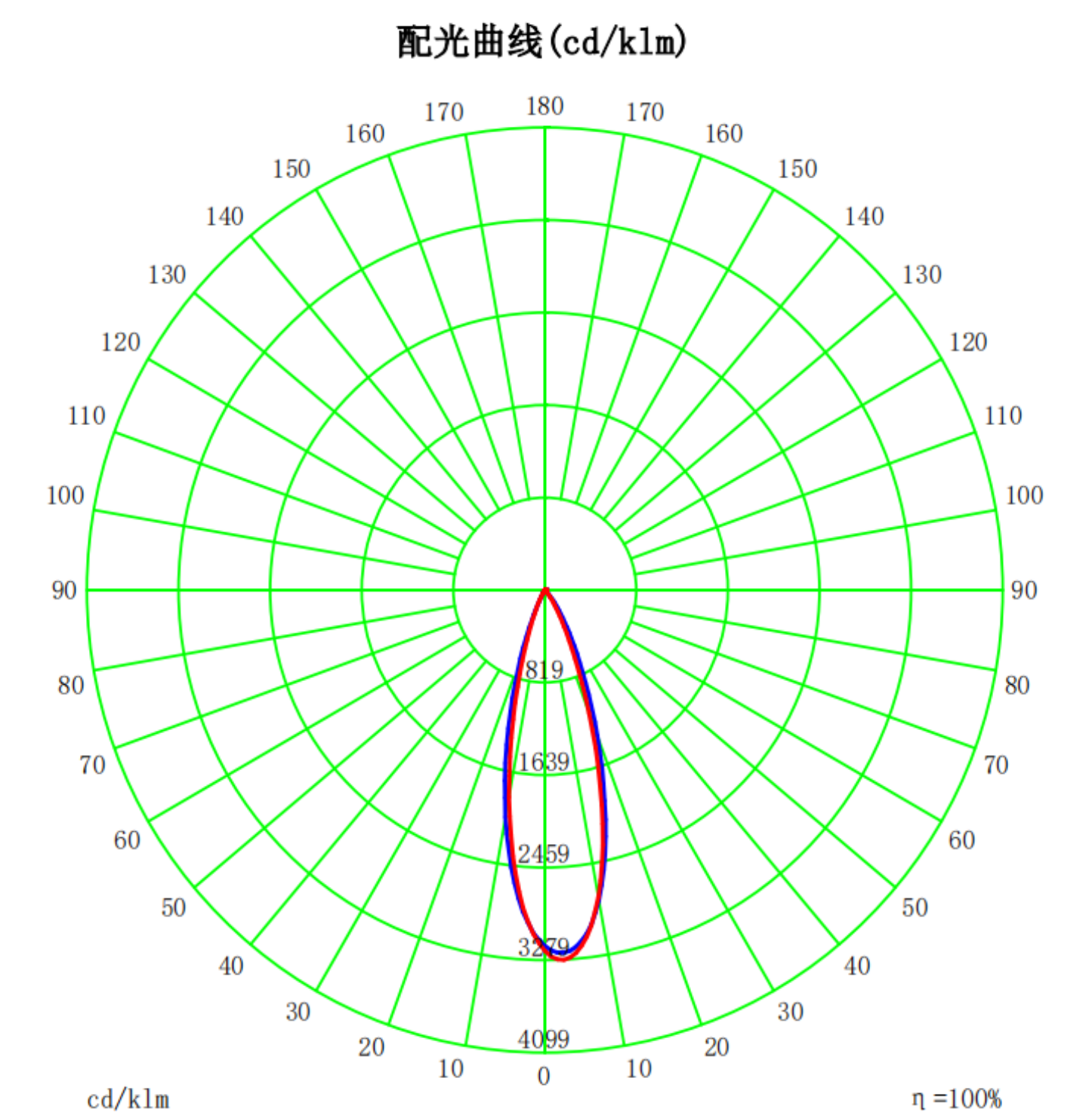

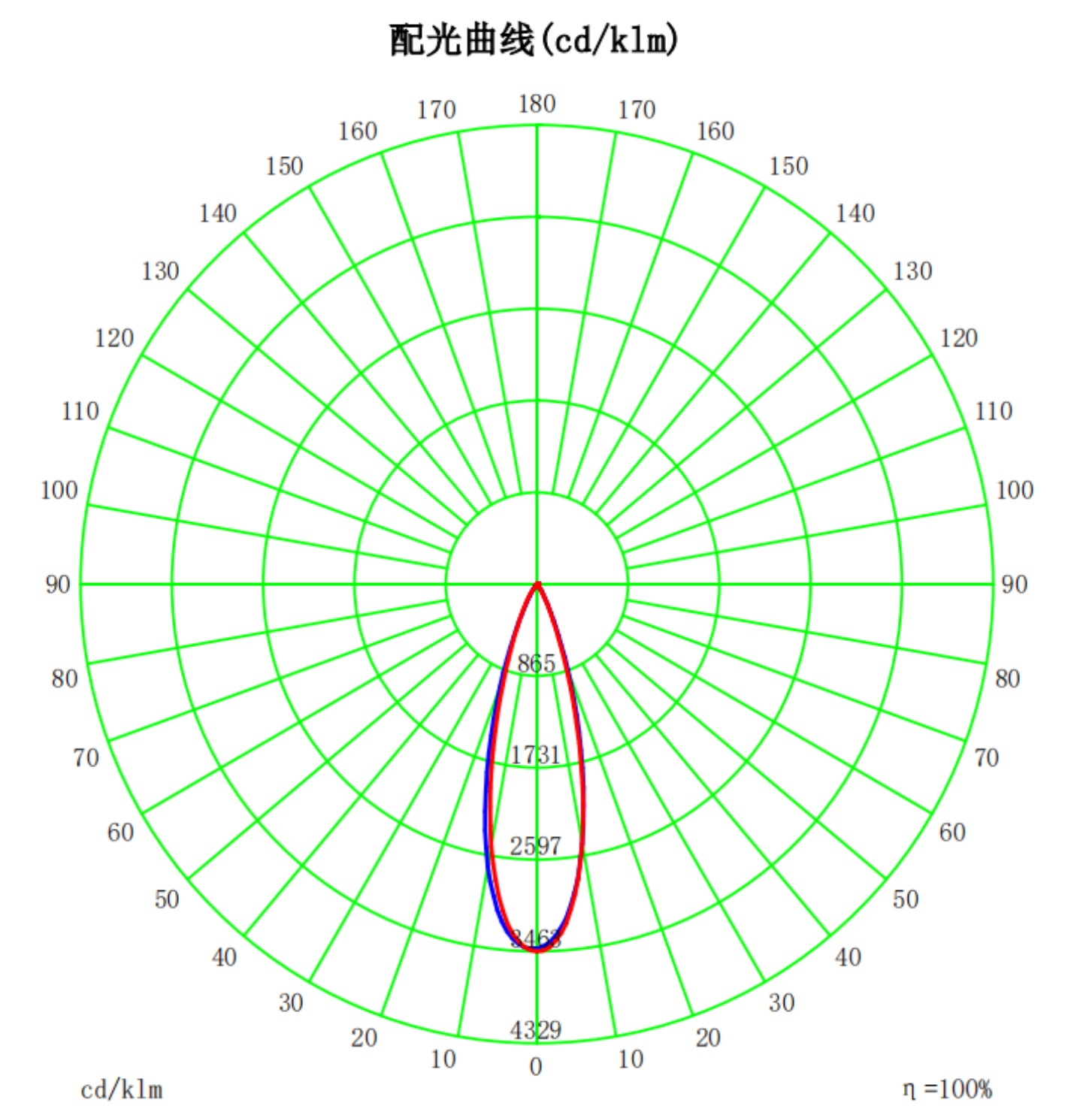

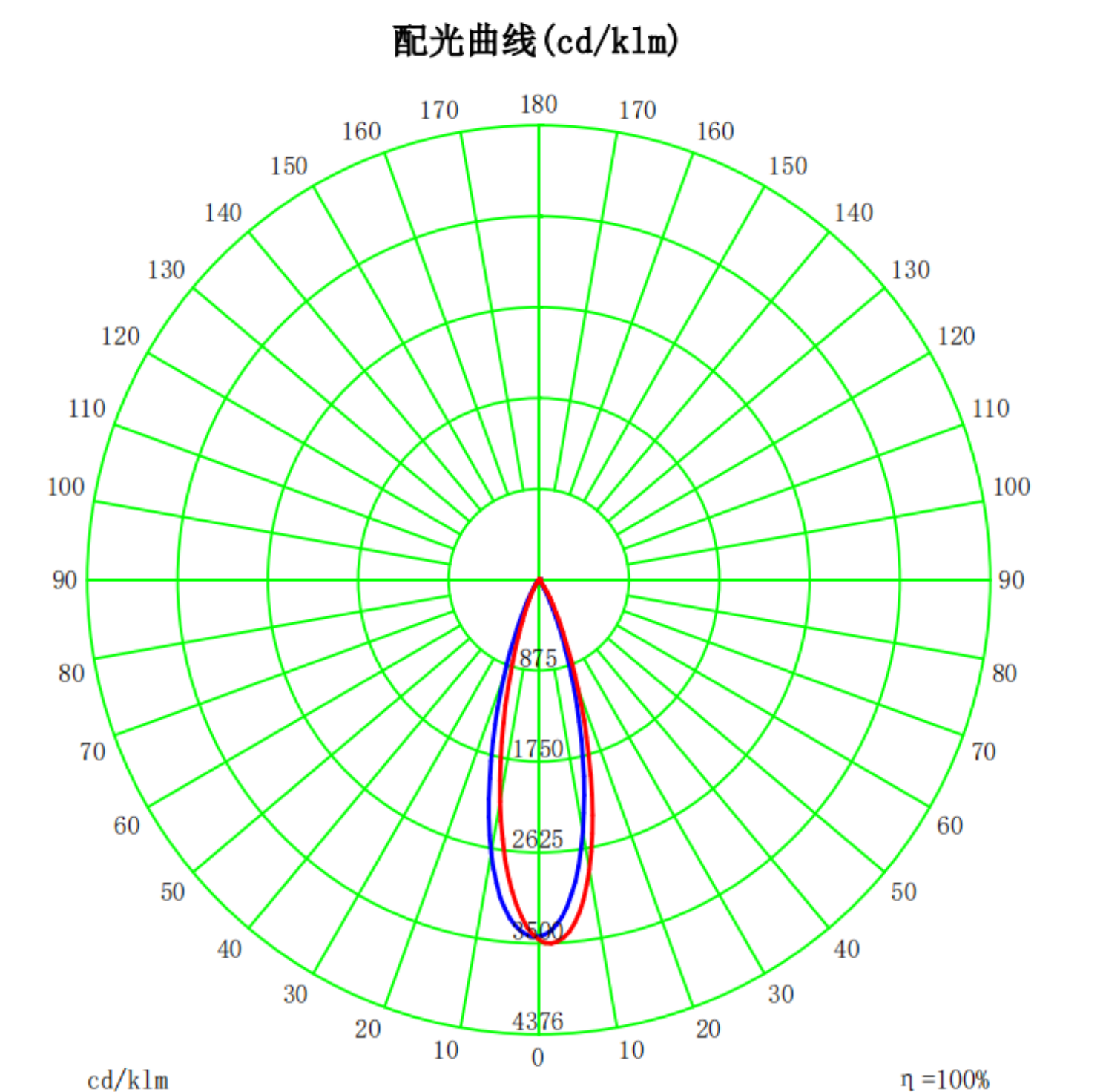

Distribution；LUX Diagram

3000k  CRI≥90
36°



3500k CRI≥90
36°



4000k  CRI≥90
36°

Magnetic lamp SH15-GO08

Lamp body cover with high purity 6063 aluminum profile, through the hot extrusion process molding, high thermal conductivity, can effectively reduce the LED light decline, prolong the life of the whole lamp.
