Product Description

Datasheet

Model: SH15-LG80
Power 16W
Input voltage DC24V
Output voltage DC 660mA
CRI ≥90
Temperature 2700K/3000K/3500K/4000K
Beam angle 355°
Luminous flux 123.1 lm
UGR <19
Size 150*φ80mm
Cut /
Material Aluminum
Finish White/Black/Golden
Installation Track
Control On/off；
IP Rating IP20
Warranty Three years



Packing  Datasheet

Model SH15-LG80
Packaging unit Inner box Outer box
Quantity 1pcs 12PCS
Dimension 18.5*15*12.5cm 39*32.5*40cm
Volume 0.03dm³ 0.05dm³



ORDERING CODE

Family Name Luminaire Type Power CRI CCT Beam Agnle Color Control Remarks
SH15 SERIES LG80 16W 90 30 36 W N
      90:Ra90    95:Ra95 97:Ra97 30:3000K   36:36°  White N:ON/OFF
35:3500K Black
40:4000K Golden
CT:3000K-4000K

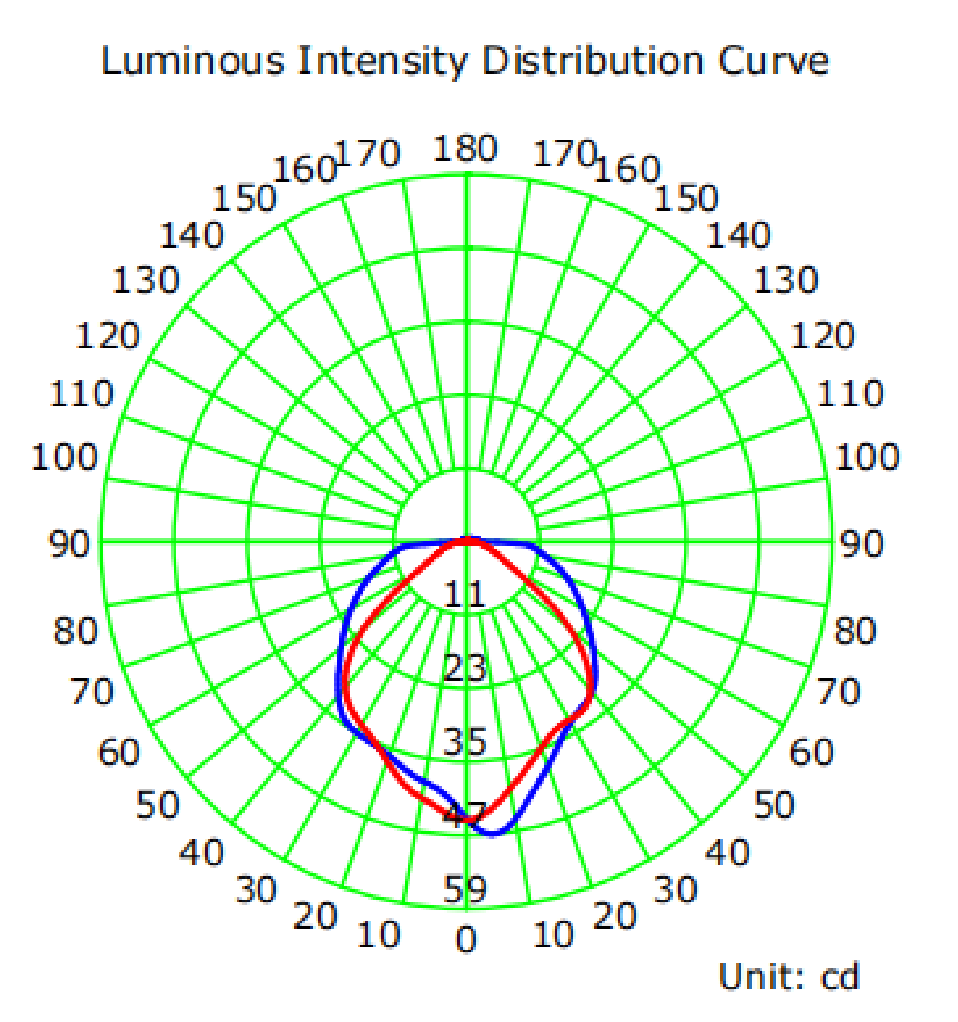

Distribution；LUX Diagram

3000k  CRI≥90
355°



Magnetic lamp SH15-LG80

Lamp body cover with high purity 6063 aluminum profile, through the hot extrusion process molding, high thermal conductivity, can effectively reduce the LED light decline, prolong the life of the whole lamp.
Product Categories: Light
Keywords: SHIHONG LIGHT
Inquiry now
Whatsapp

Product Download

Product Description

Datasheet

Model: SH15-LG80
Power 16W
Input voltage DC24V
Output voltage DC 660mA
CRI ≥90
Temperature 2700K/3000K/3500K/4000K
Beam angle 355°
Luminous flux 123.1 lm
UGR <19
Size 150*φ80mm
Cut /
Material Aluminum
Finish White/Black/Golden
Installation Track
Control On/off；
IP Rating IP20
Warranty Three years



Packing  Datasheet

Model SH15-LG80
Packaging unit Inner box Outer box
Quantity 1pcs 12PCS
Dimension 18.5*15*12.5cm 39*32.5*40cm
Volume 0.03dm³ 0.05dm³



ORDERING CODE

Family Name Luminaire Type Power CRI CCT Beam Agnle Color Control Remarks
SH15 SERIES LG80 16W 90 30 36 W N
      90:Ra90    95:Ra95 97:Ra97 30:3000K   36:36°  White N:ON/OFF
35:3500K Black
40:4000K Golden
CT:3000K-4000K






Distribution；LUX Diagram

3000k  CRI≥90
355°
