Product Description

Datasheet

ModLe: SH15-FL30
Power	6W
Input voltage	DC48V/24V
Output voltage	DC 250mA
CRI	≥90
Temperature	2700K/3000K/3500K/4000K
Beam angle	/
Luminous flux	167lm~250lm
UGR	<19
Size	3001510mm
Cut	/
Material	Aluminum
Finish	White/Black/Golden
Installation	Track
Control	On/off；
IP Rating	IP20
Warranty	Three years

Packing Datasheet

Family Name	Luminaire Type	Power	CRI	CCT	Beam Agnle	Color	Control	Remarks
M15 SERIES	FL30	6W	90	27	/	W	N	Remarks
			90:Ra90 95:Ra95 97:Ra97	27:2700K		White	N:ON/OFF
				30:3000K		Black
				35:3500K		Golden
				40:4000K
				CT:2700K-4000K

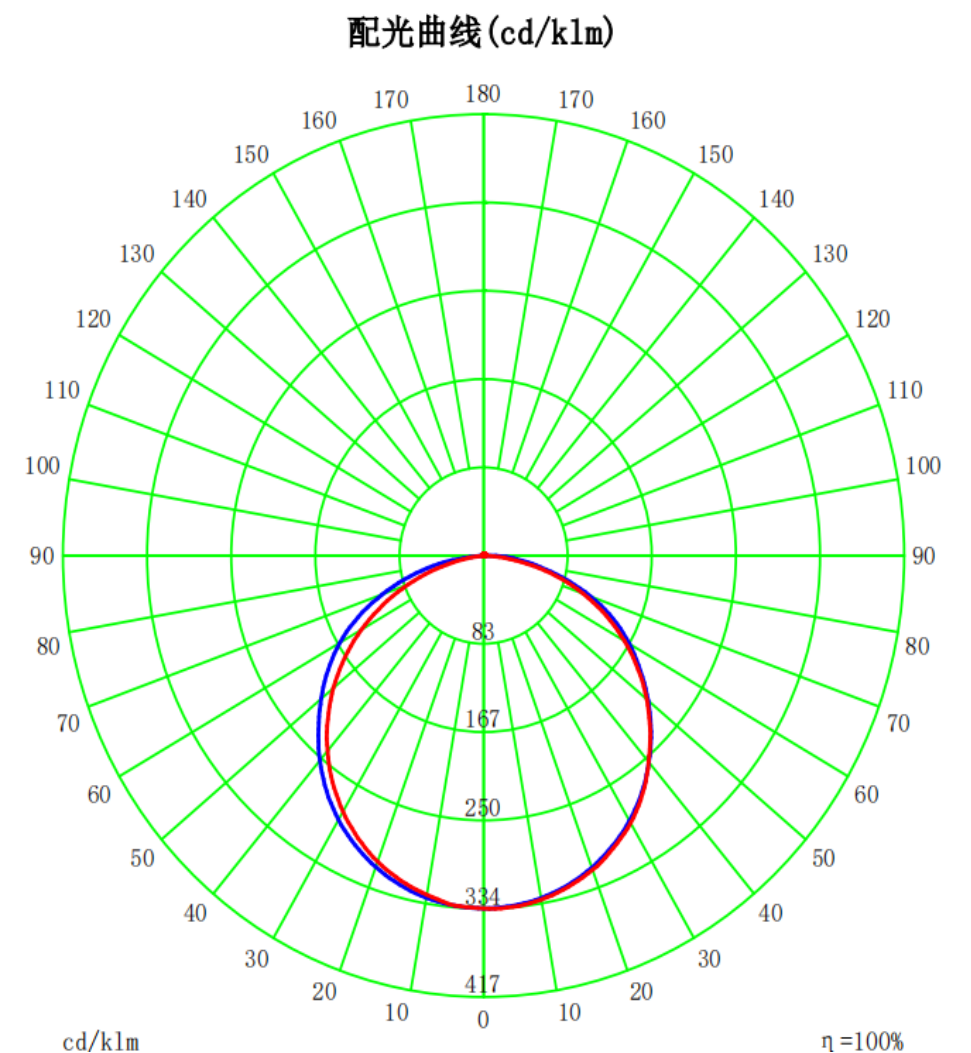

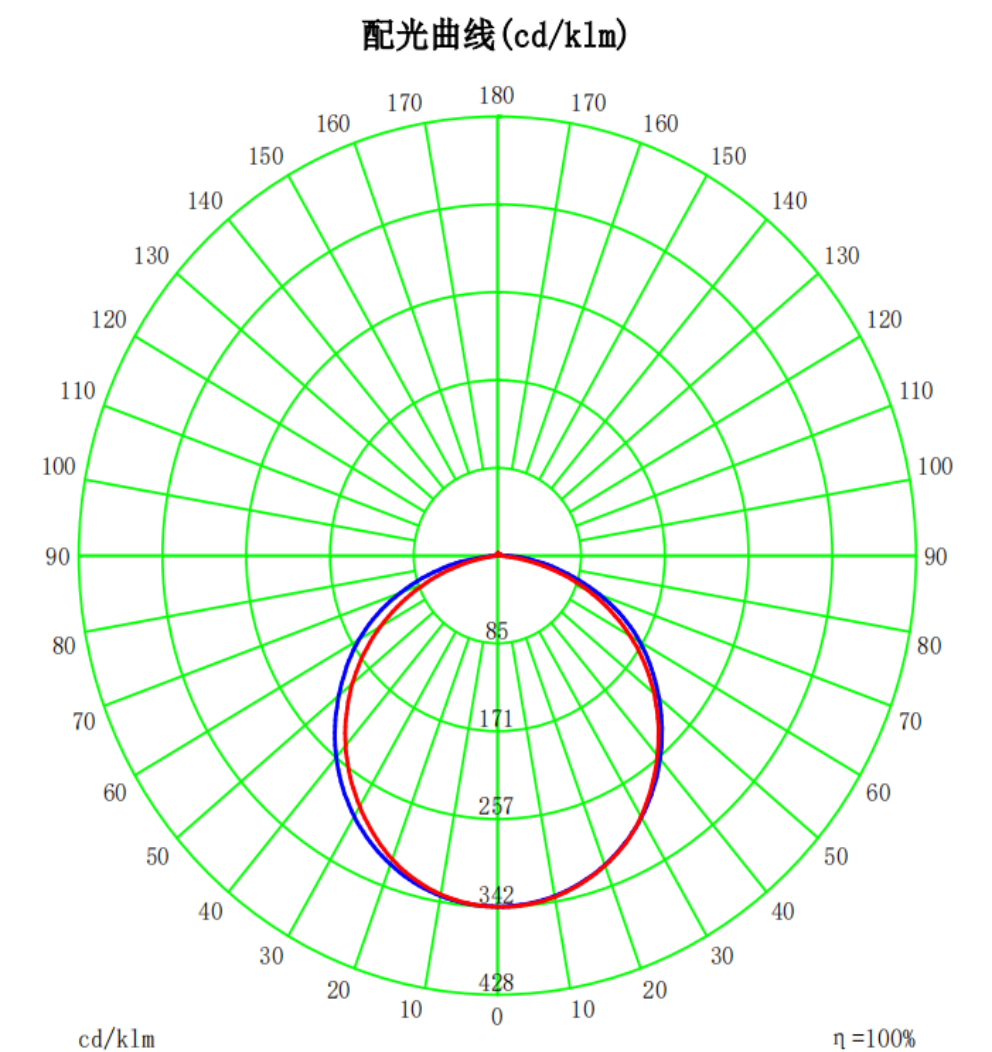

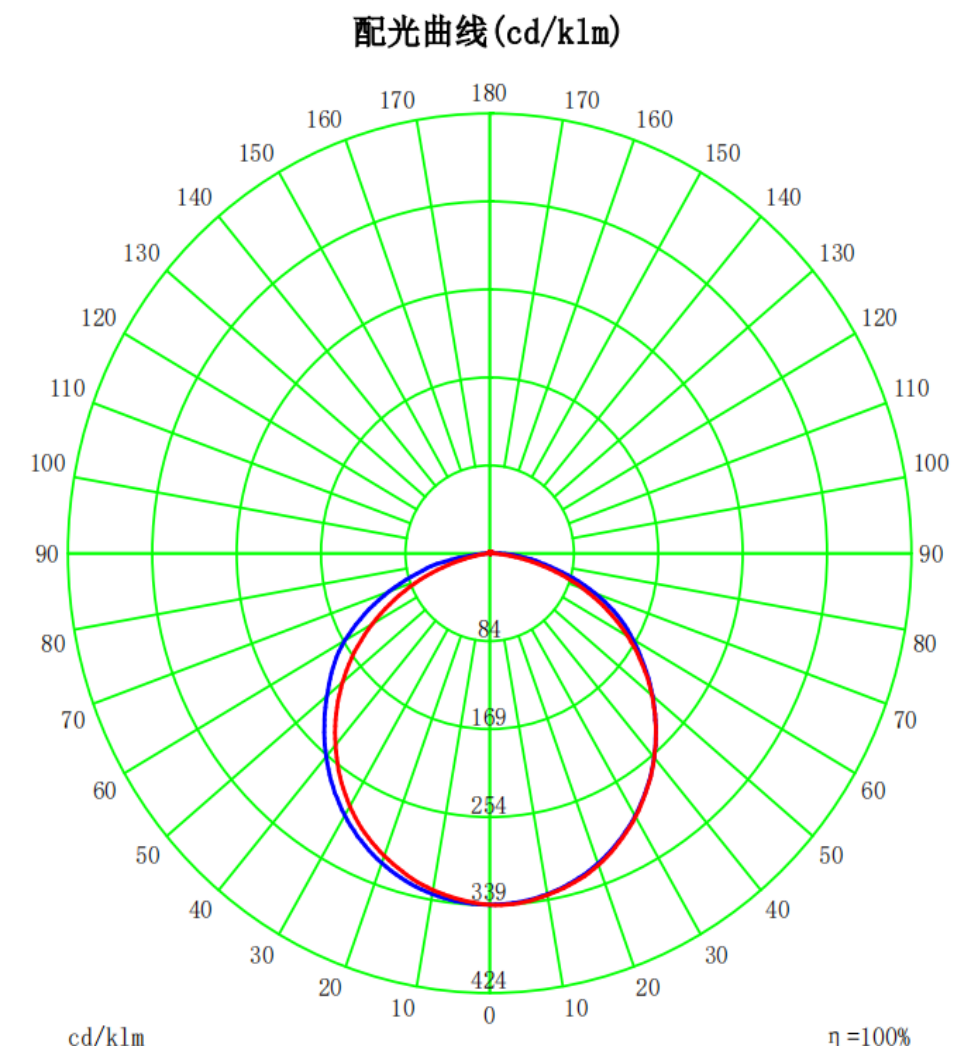

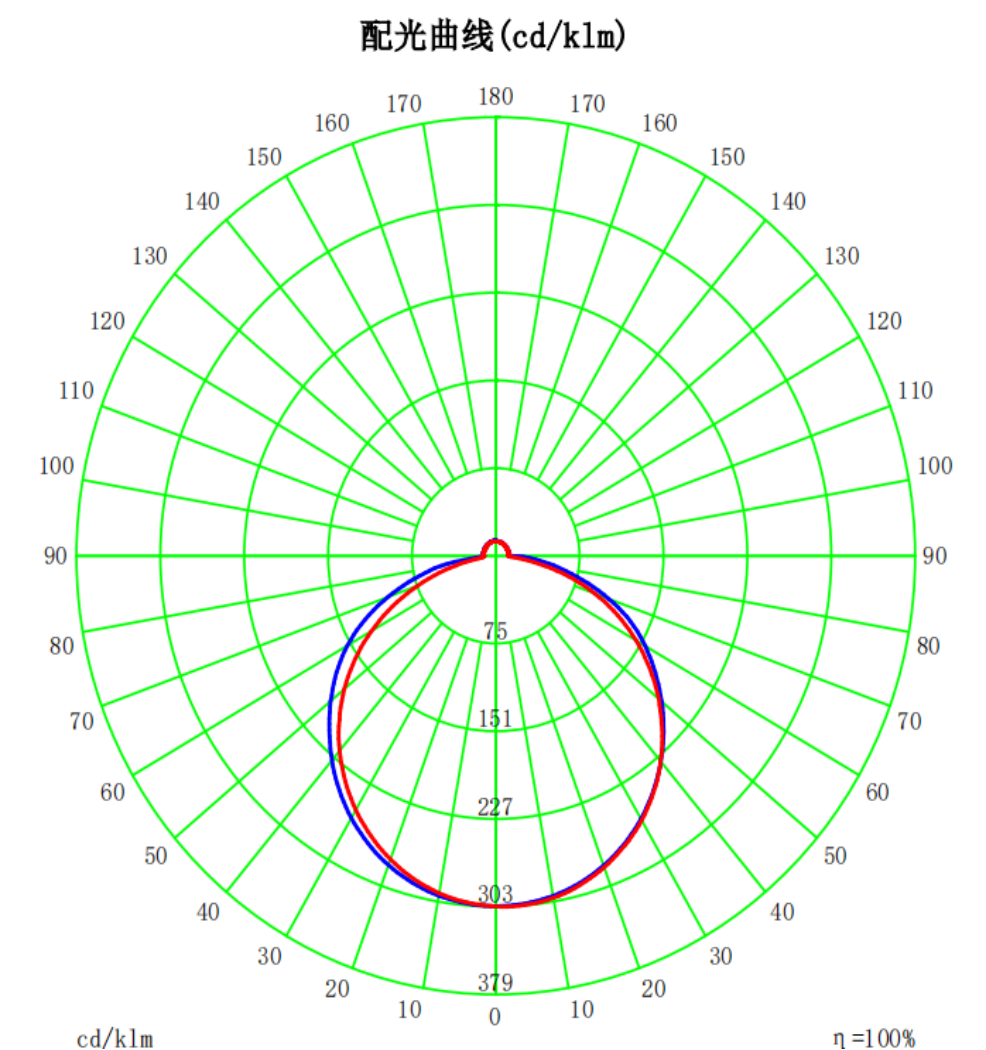

Distribution；LUX Diagram

2700K CRI≥90

3000K CRI≥90

3500K CRI≥90

4000K CRI≥90

Magnetic lamp SH15-FL30

Lamp body cover with high purity 6063 aluminum profile, through the hot extrusion process molding, high thermal conductivity, can effectively reduce the LED light decline, prolong the life of the whole lamp.

Product Categories: Light

Keywords: SHIHONG LIGHT

Inquiry now

Product Download

SH15-FL30 Specifications

SH15-FL30-6W-230lm-4000K-CRI 90°

SH15-FL30-6W-192lm-3500K-CRI 90°

SH15-FL30-6W-167lm-3000K-CRI 90°
