Product Description

Datasheet

Model: SH-SR35
Power 7W
Input voltage) DC220V   50/60Hz
Output voltage DC40V   200mA
CRI ≥90
Temperature 2700K/3000K/3500K/4000K
Beam angle 15°/24°/36°
Luminous flux 591lm~854lm
UGR <19
Size φ42*H68mm
Cut φ35mm
Material Aluminum
Finish White\Shine black\Graphite black\Concrete grey\Gold\French Gold
Installation Embedded type
Control On/off；
IP Rating IP20
Warranty Three years



Packing  Datasheet

Model SH-SR35
Packaging unit Inner box Outer box
Quantity 1pcs 20pcs
Dimension 77*61*108mm 320*165*230mm
Volume 0.51dm³ 12.1dm³



ORDERING CODE

Family Name Luminaire Type Power CRI CCT Beam Agnle Color Control Remarks
SHL-70 SERIES 7031 7W 90 27 15 W N
  35: φ35      7W 90:Ra90    95:Ra95 97:Ra97 27:2700K 15:15°
24:24°
36:36°		 White N:ON/OFF
30:3000K Shine black
35:3500K Graphite black
40:4000K Concrete grey
CT:2700K-4000K Gold\
French Gold

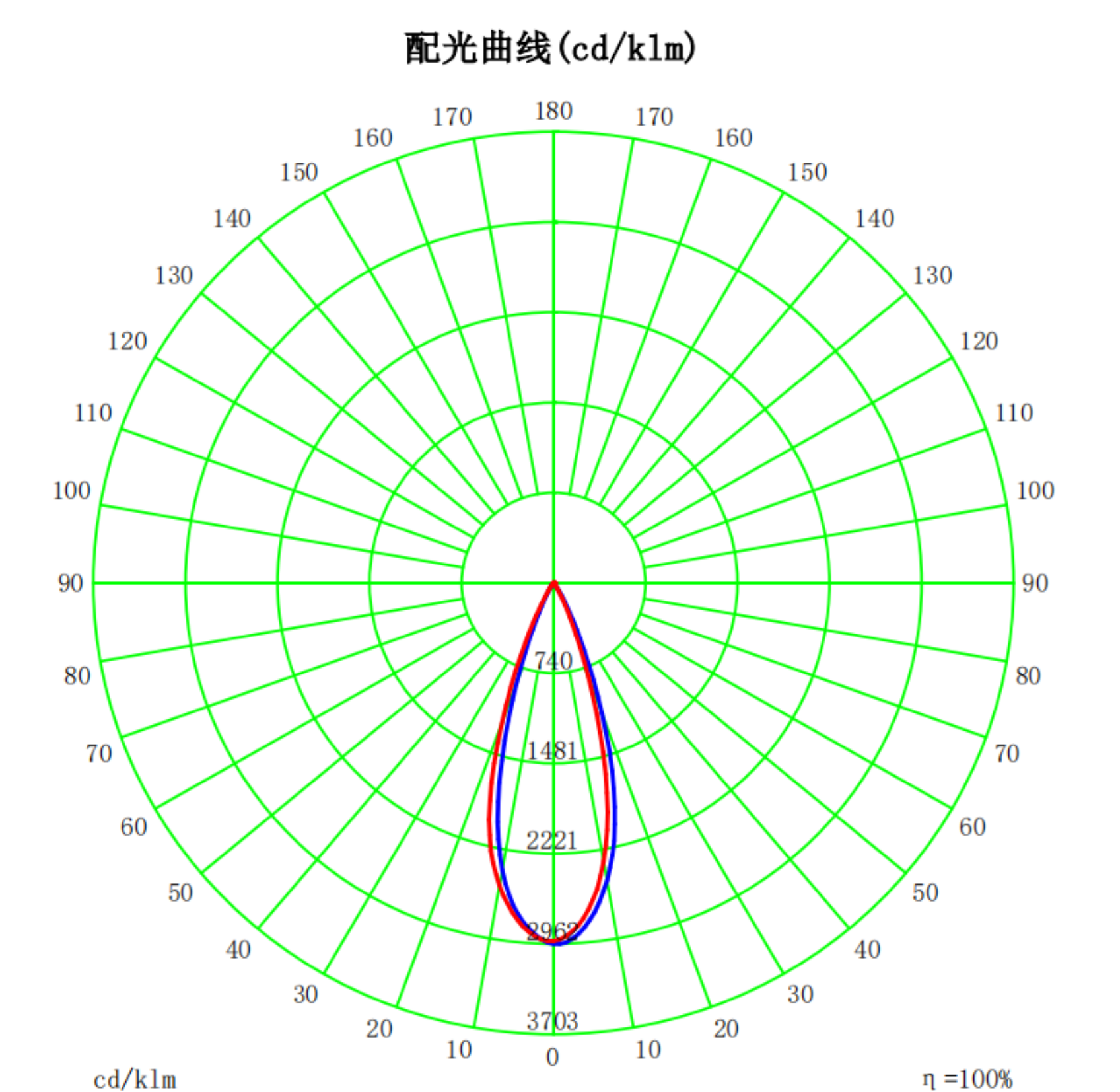

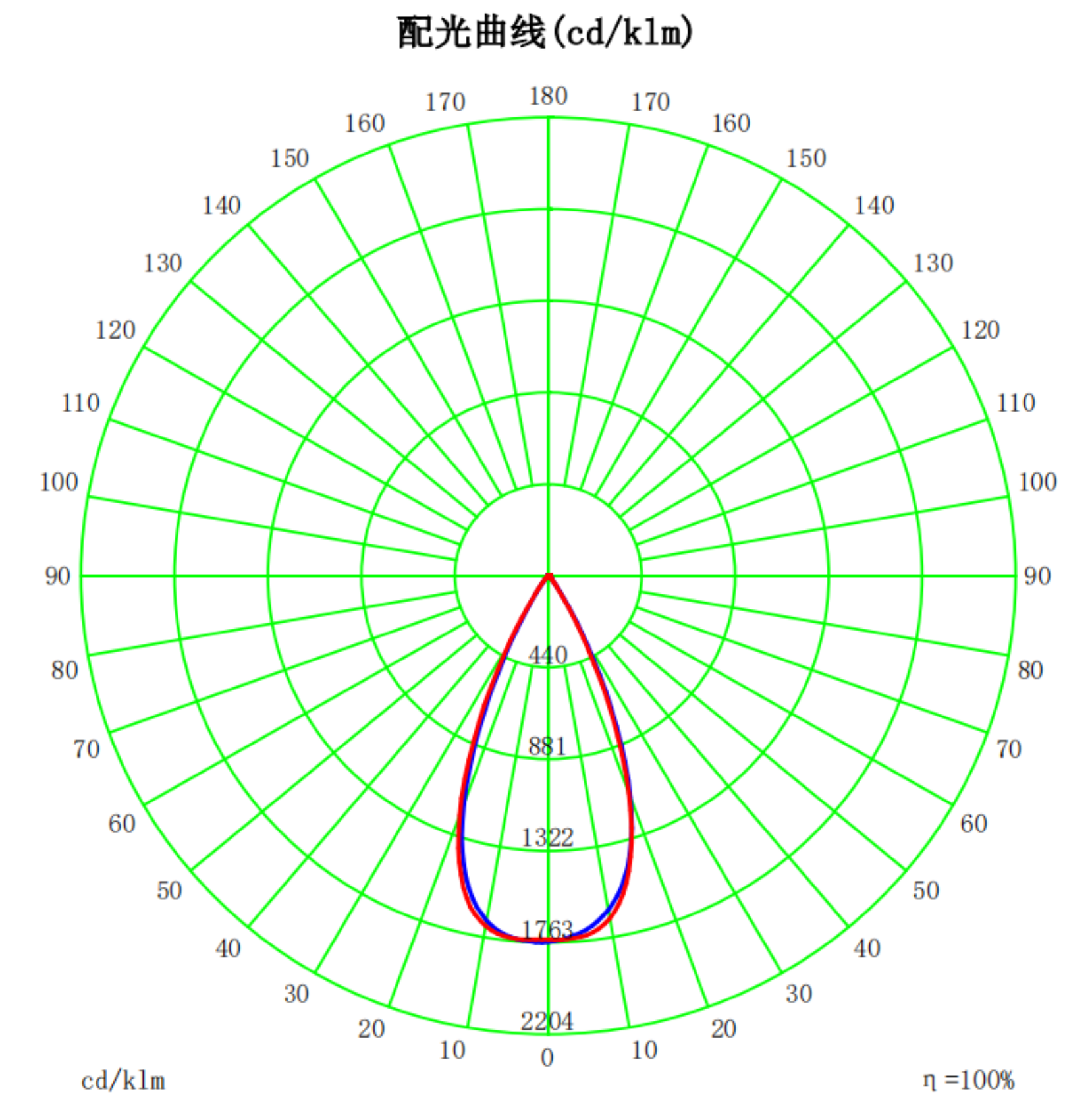

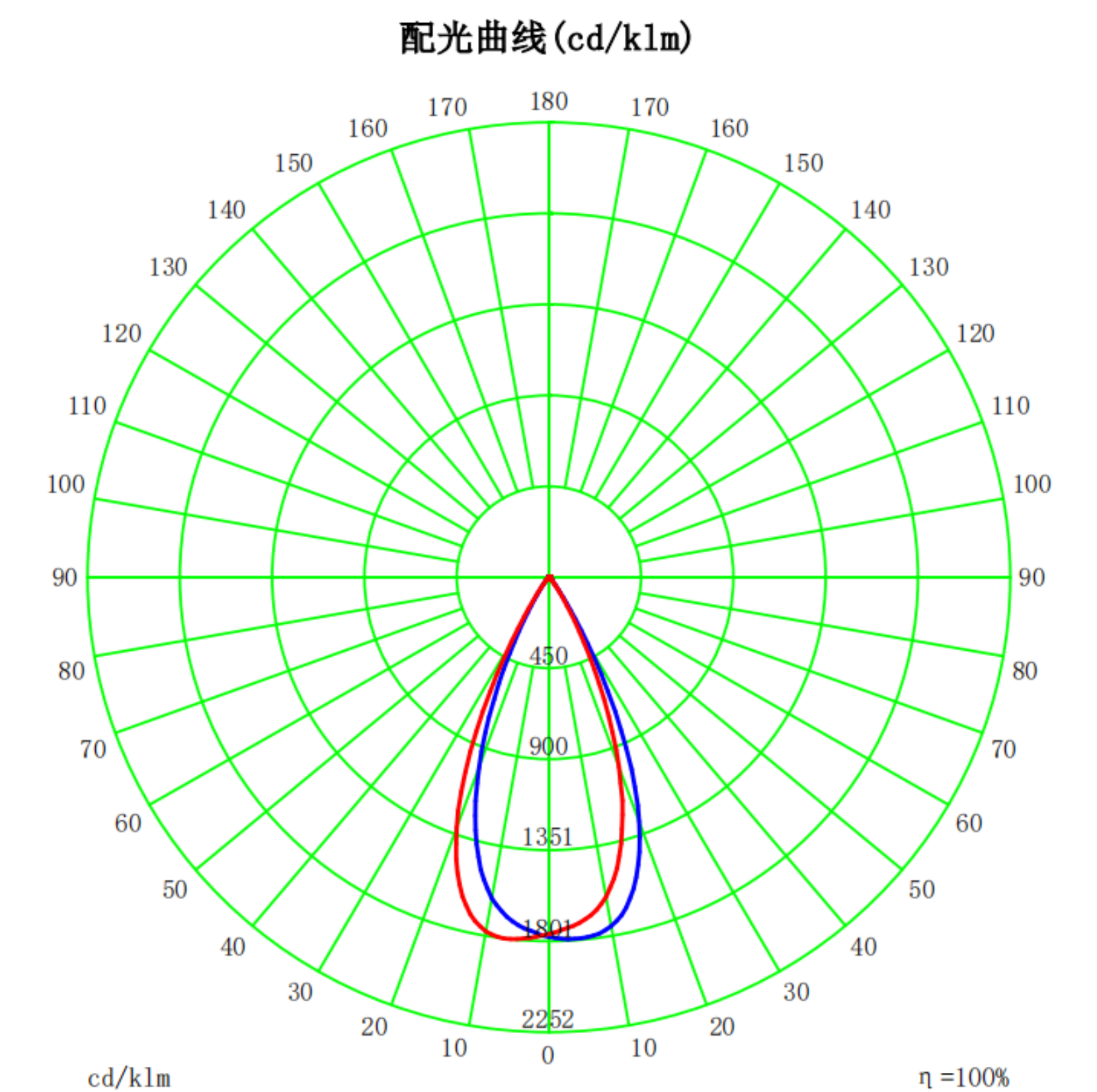

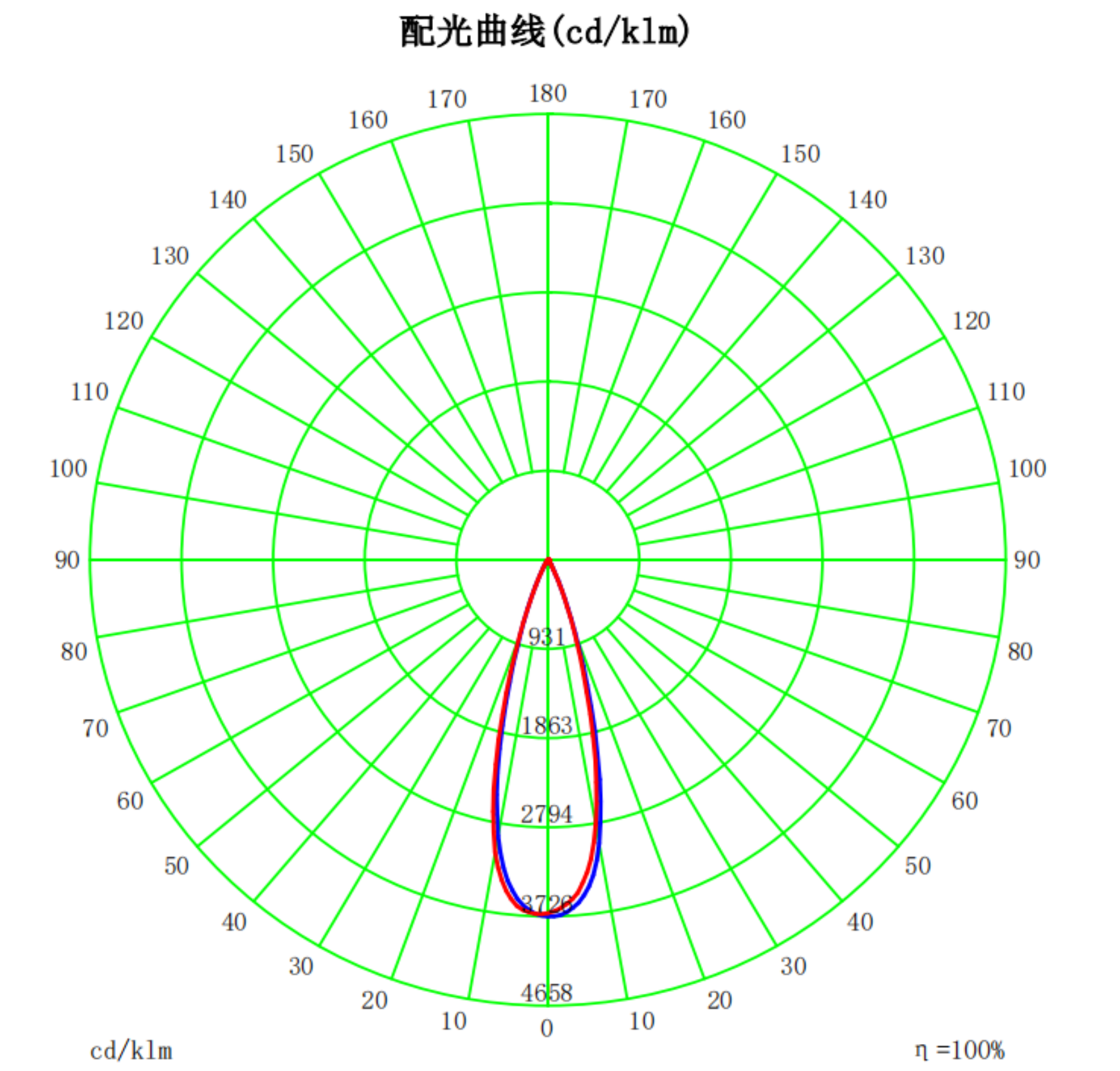

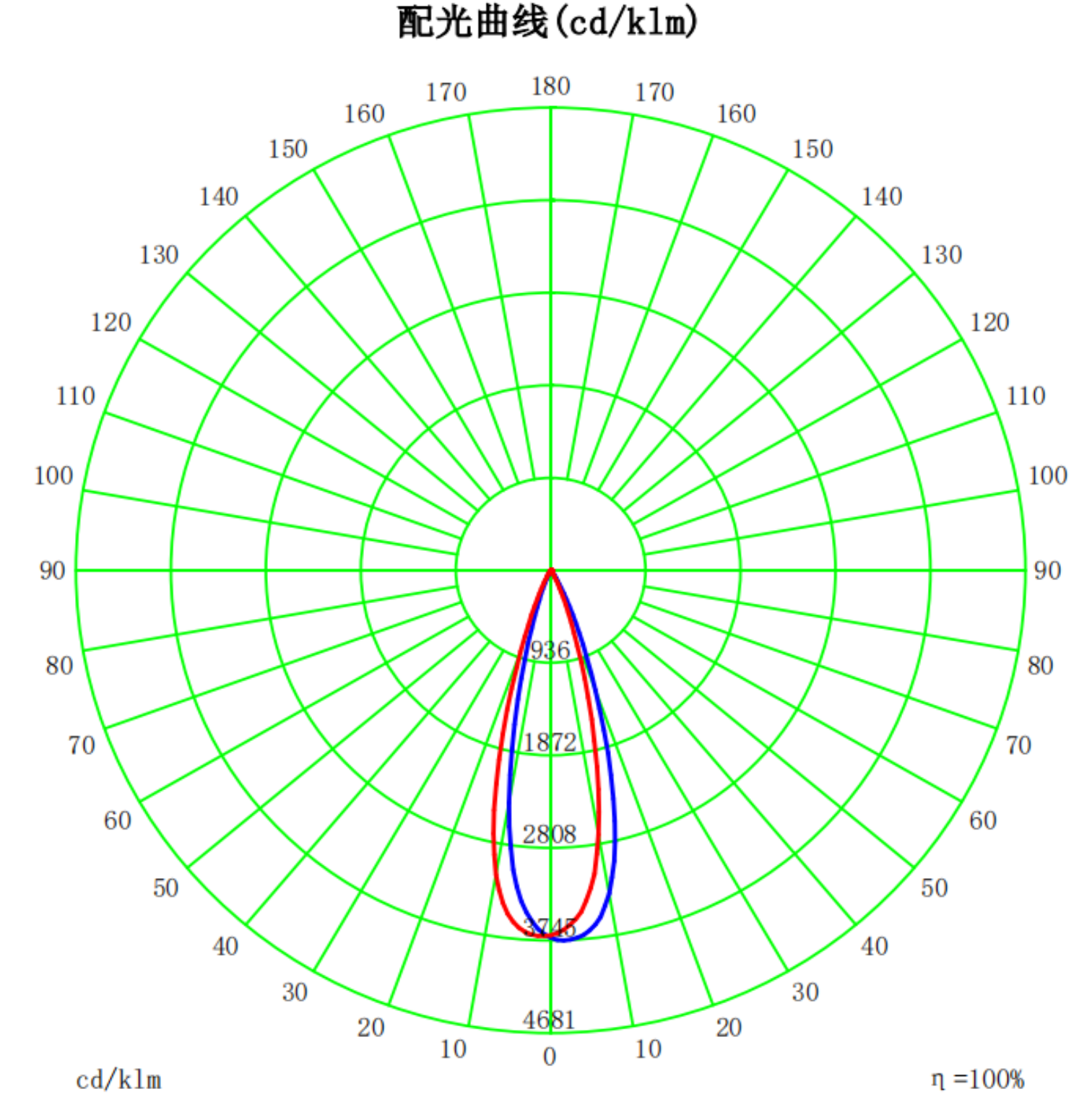

Distribution；LUX Diagram

 2700K CRI≥90
15° 24° 36°



 3000K CRI≥90
15° 24° 36°



 3500K CRI≥90
15° 24° 36°



4000K CRI≥90
15° 24° 36°



Spotlight SH-SR35

Lamp body cover with high purity 6063 aluminum profile, through the hot extrusion process molding, high thermal conductivity, can effectively reduce the LED light decline, prolong the life of the whole lamp.
