  • Surface mounted spotlights SH-KY-1
  • Surface mounted spotlights SH-KY-1
  • Surface mounted spotlights SH-KY-1
Surface mounted spotlights SH-KY-1
Surface mounted spotlights SH-KY-1
Surface mounted spotlights SH-KY-1
+

Product Description

Datasheet

Model: SH-KY-1
Power 5W
Input voltage DC220V   50/60Hz
Output voltage DC 120mA  25-40V
CRI ≥90
Temperature 2700K/3000K/3500K/4000K
Beam angle 15°/24°/36°
Luminous flux 414lm~485lm
UGR <19
Size 105*64*48mm
Cut /
Material Aluminum
Finish WHITE/BLACK
Installation Surface
Control On/off；
IP Rating IP20
Warranty Three years



Packing  Datasheet

Model SH-KY-1
Packaging unit Inner box Outer box
Quantity 1pcs 20pcs
Dimension 105*65*60mm 350*230*130mm
Volume 0.4dm³ 10.5dm³



ORDERING CODE

Family Name Luminaire Type Power CRI CCT Beam Agnle Color Control Remarks
SH-KY SERIES KY-1 5W 90 35 15 W N
    5W
10W
15W
30W
38W		 90:Ra90    95:Ra95 97:Ra97 27:2700K 15:15°    24:24°    36:36°  White N:ON/OFF
30:3000K Black
35:3500K
40:4000K
CT:2700K-4000K

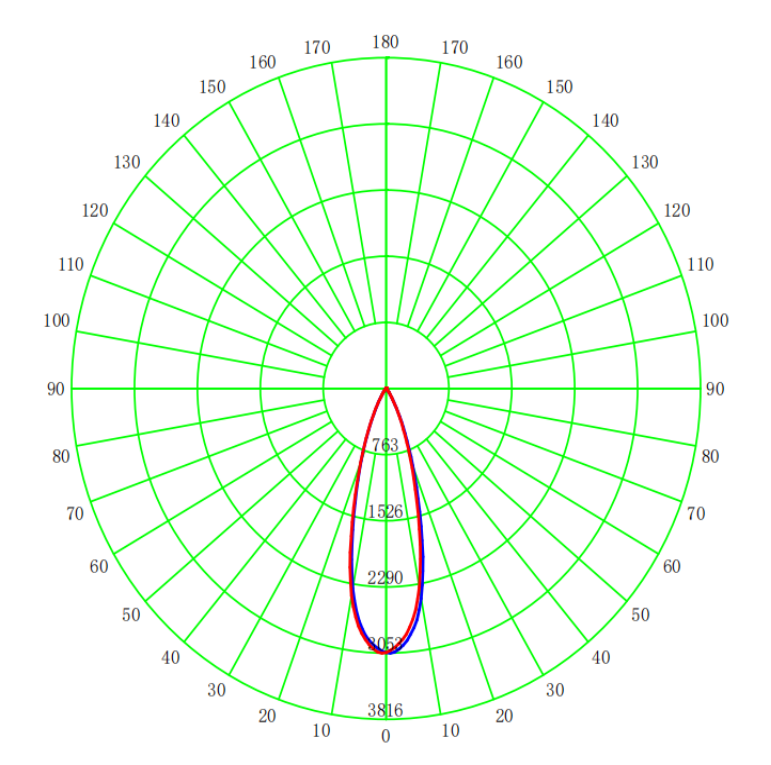

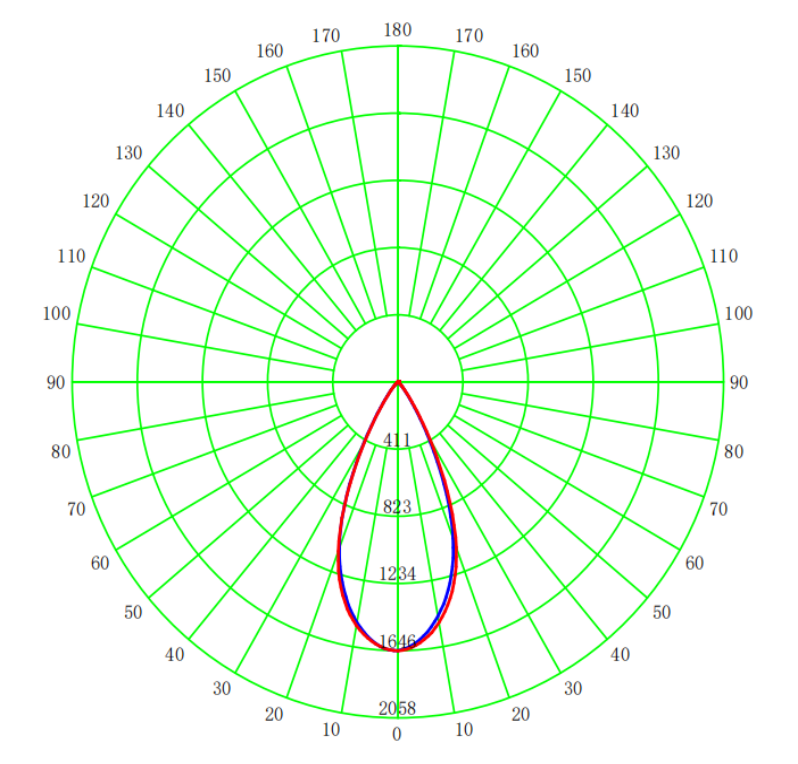

Distribution；LUX Diagram

 3500K CRI≥90
15° 24° 36°

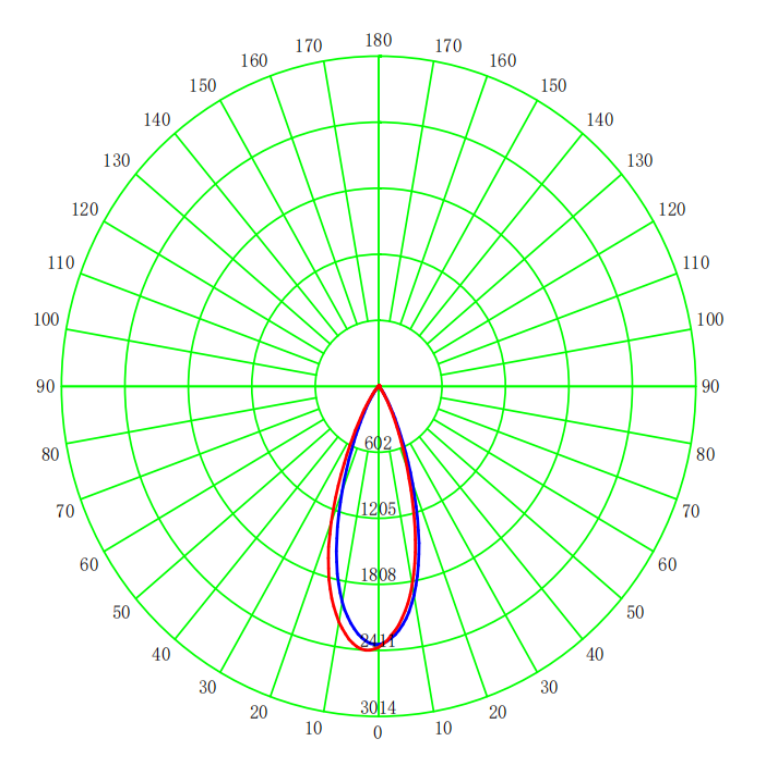

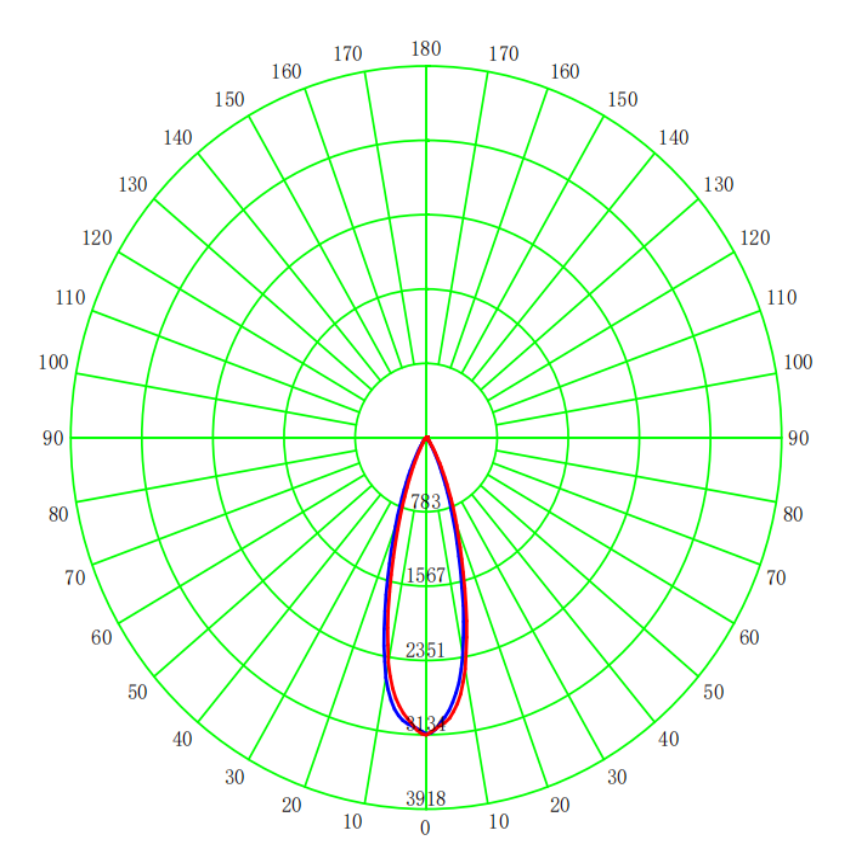

4000K CRI≥90
15° 24° 36°



Surface mounted spotlights SH-KY-1

Lamp body cover with high purity 6063 aluminum profile, through the hot extrusion process molding, high thermal conductivity, can effectively reduce the LED light decline, prolong the life of the whole lamp.
