Magnetic Track Light

Down Light

Surface Down Light

Elbow downlights

Smart Control Panel

  • Surface mounted spotlights SH-SR76
  • Surface mounted spotlights SH-SR76
  • Surface mounted spotlights SH-SR76
Surface mounted spotlights SH-SR76
Surface mounted spotlights SH-SR76
Surface mounted spotlights SH-SR76
+

Product Description

Datasheet

Model: SH-SR76
Power 12W
Input voltage DC220V   50/60Hz
Output voltage DC 300mA  25-40V
CRI ≥90
Temperature 3500K/4000K
Beam angle 15°/24°/36°
Luminous flux 1117lm~1212lm
UGR <19
Size φ76*85mm
Cut /
Material Aluminum
Finish WHITE/BLACK
Installation Surface
Control On/off；
IP Rating IP20
Warranty Three years



Packing  Datasheet

Model SH-SR76
Packaging unit Inner box Outer box
Quantity 1pcs 20pcs
Dimension 80*80*90mm 420*180*200mm
Volume 0.57dm³ 15.1dm³



ORDERING CODE

Family Name Luminaire Type Power CRI CCT Beam Agnle Color Control Remarks
SH-S SERIES SR76 12W 90 35 15 W N
    12W
24W		 90:Ra90    95:Ra95 97:Ra97 27:2700K 15:15°    24:24°    36:36°  White N:ON/OFF
30:3000K Black
35:3500K
40:4000K
CT:2700K-4000K

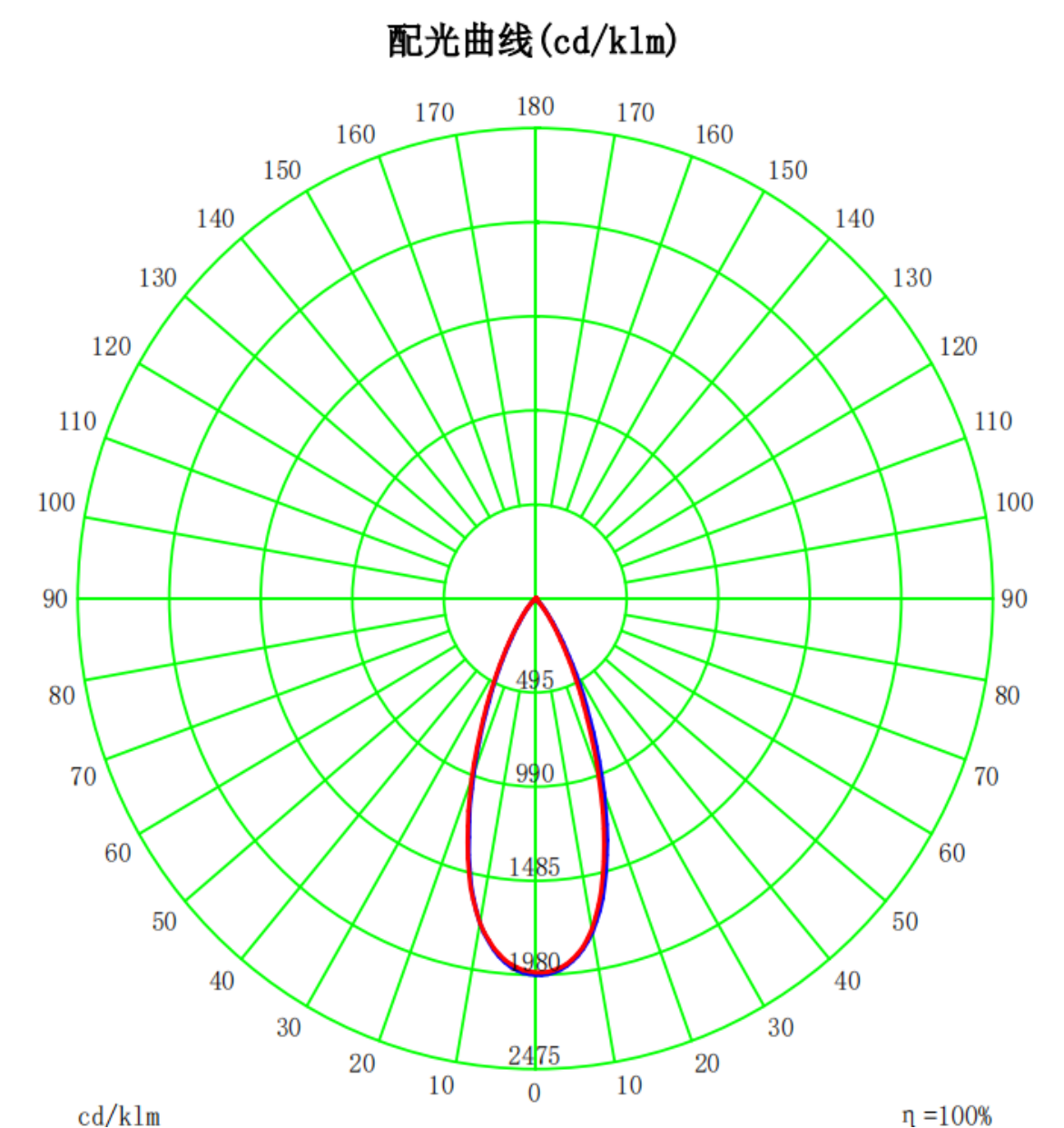

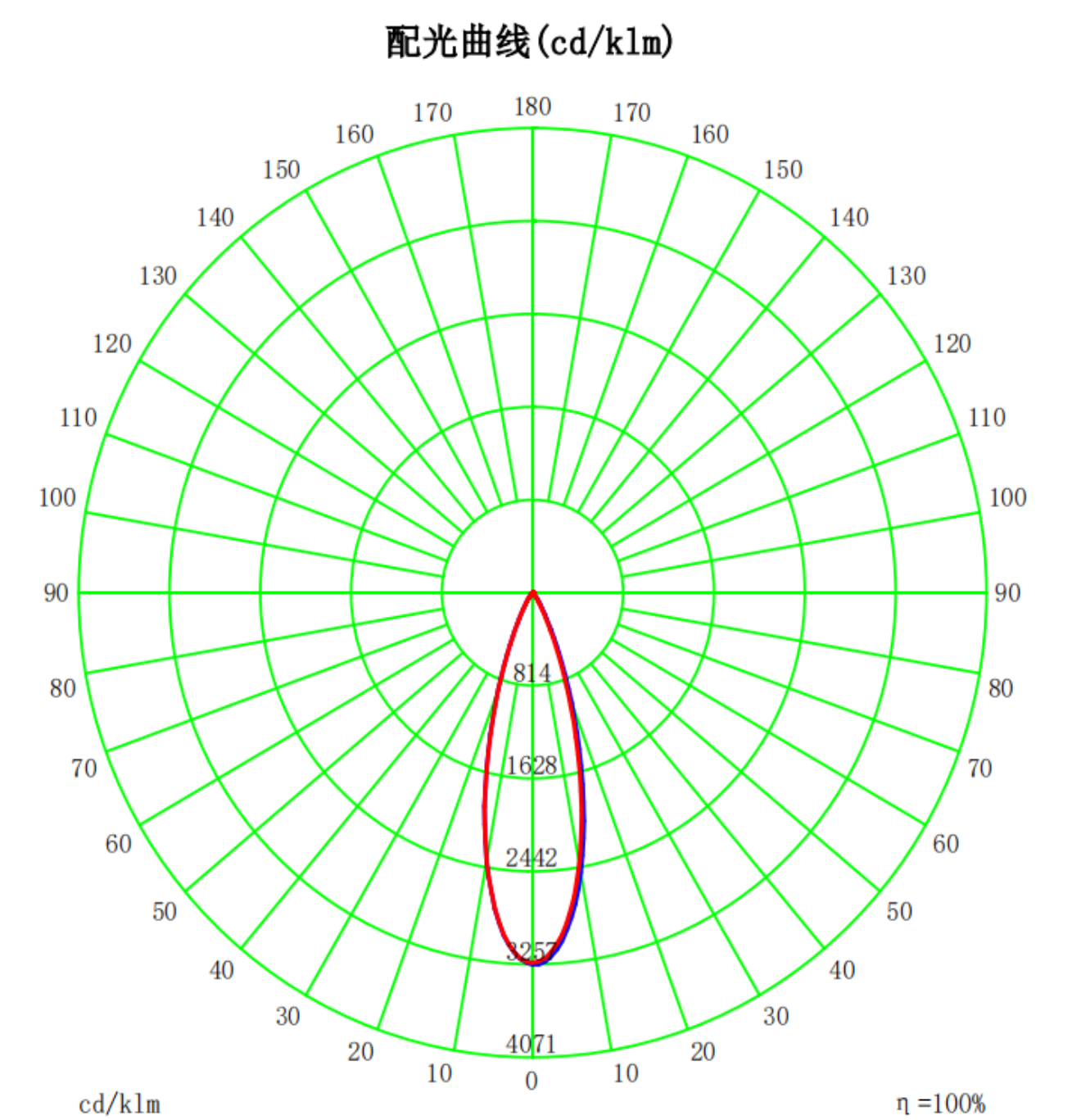

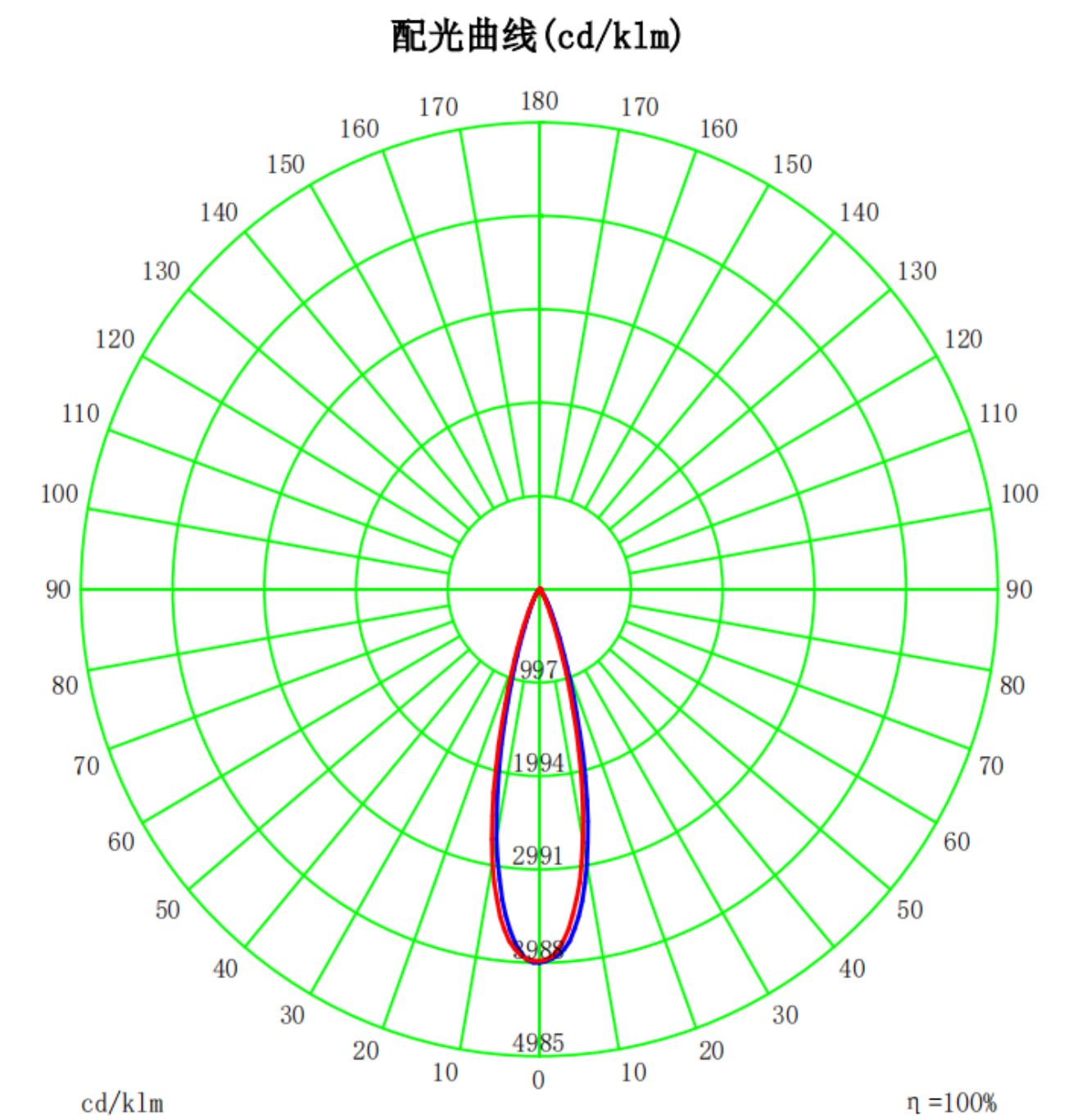

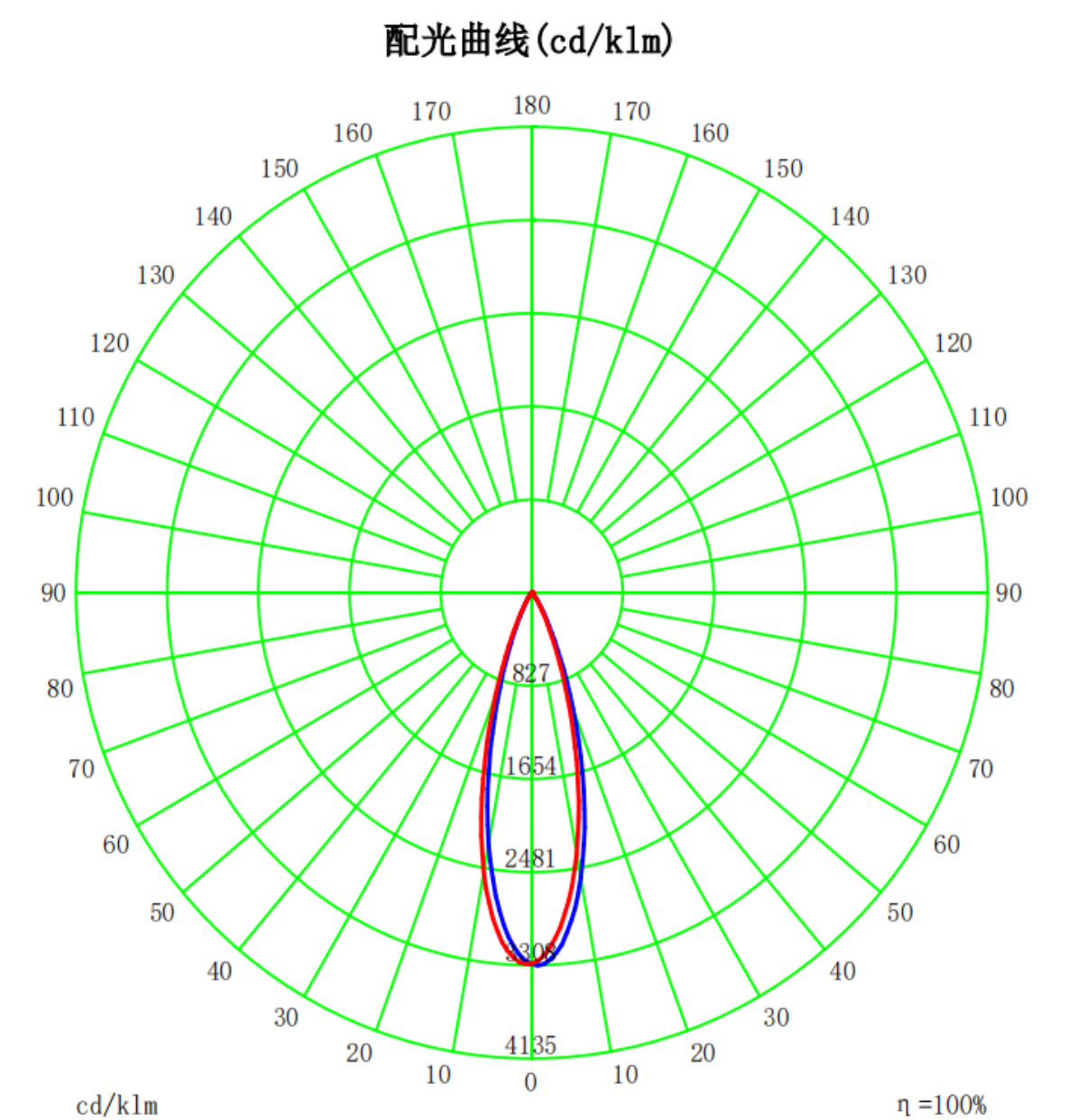

Distribution；LUX Diagram

 3500K CRI≥90
15° 24° 36°



4000K CRI≥90
15° 24° 36°



Surface mounted spotlights SH-SR76

Lamp body cover with high purity 6063 aluminum profile, through the hot extrusion process molding, high thermal conductivity, can effectively reduce the LED light decline, prolong the life of the whole lamp.
Product Categories: Surface Down Light
Keywords: SHIHONG LIGHT
Inquiry now
Whatsapp

Product Download

Product Description

Datasheet

Model: SH-SR76
Power 12W
Input voltage DC220V   50/60Hz
Output voltage DC 300mA  25-40V
CRI ≥90
Temperature 3500K/4000K
Beam angle 15°/24°/36°
Luminous flux 1117lm~1212lm
UGR <19
Size φ76*85mm
Cut /
Material Aluminum
Finish WHITE/BLACK
Installation Surface
Control On/off；
IP Rating IP20
Warranty Three years



Packing  Datasheet

Model SH-SR76
Packaging unit Inner box Outer box
Quantity 1pcs 20pcs
Dimension 80*80*90mm 420*180*200mm
Volume 0.57dm³ 15.1dm³



ORDERING CODE

Family Name Luminaire Type Power CRI CCT Beam Agnle Color Control Remarks
SH-S SERIES SR76 12W 90 35 15 W N
    12W
24W		 90:Ra90    95:Ra95 97:Ra97 27:2700K 15:15°    24:24°    36:36°  White N:ON/OFF
30:3000K Black
35:3500K
40:4000K
CT:2700K-4000K



Distribution；LUX Diagram

 3500K CRI≥90
15° 24° 36°



4000K CRI≥90
15° 24° 36°
