Product Description

Datasheet

Model: SH-SS55
Power 10W
Input voltage DC220V   50/60Hz
Output voltage DC40V   250mA
CRI ≥90
Temperature 2700K/3000K/3500K/4000K
Beam angle 15°/24°/36°/50°/60°
Luminous flux 755lm~921lm
UGR <15
Size φ58*H77mm
Cut φ55mm
Material Aluminum
Finish White\Shine black\Graphite black\Concrete grey\Gold\French Gold
Installation Embedded type
Control On/off；
IP Rating IP20
Warranty Three years



Packing  Datasheet

Model SH-SS55
Packaging unit Inner box Outer box
Quantity 1pcs 20pcs
Dimension 97*77*117mm 410*210*250mm
Volume 0.87dm³ 21.5dm³



ORDERING CODE

Family Name Luminaire Type Power CRI CCT Beam Agnle Color Control Remarks
SHL-70 series 7052 10W 90 30 15 W N
  55: φ55      10W 90:Ra90    95:Ra95 97:Ra97 27:2700K 15:15°    24:24°    36:36°
50:50°
60:60°  		 White N:ON/OFF
30:3000K Shine black
35:3500K Graphite black
40:4000K Concrete grey
CT:2700K-4000K Gold
French Gold

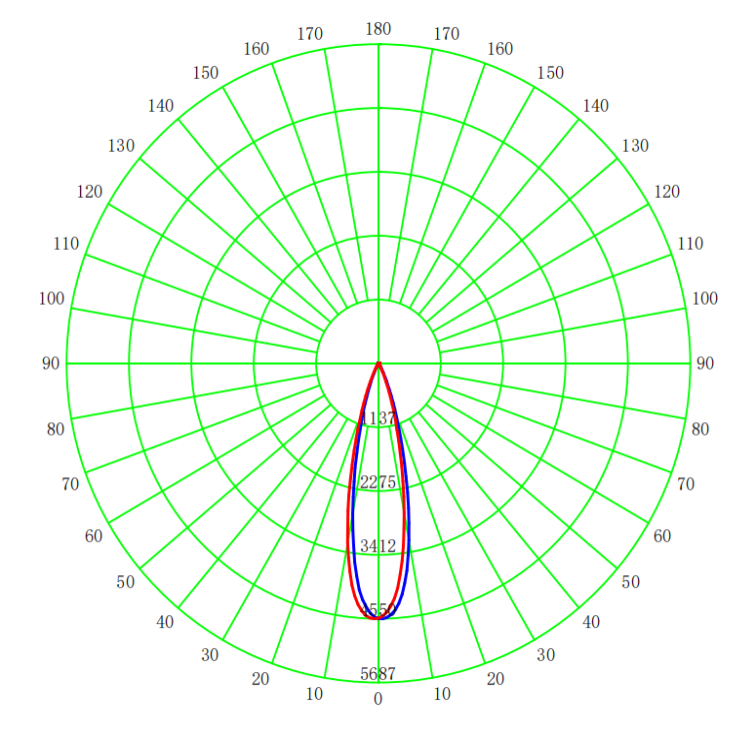

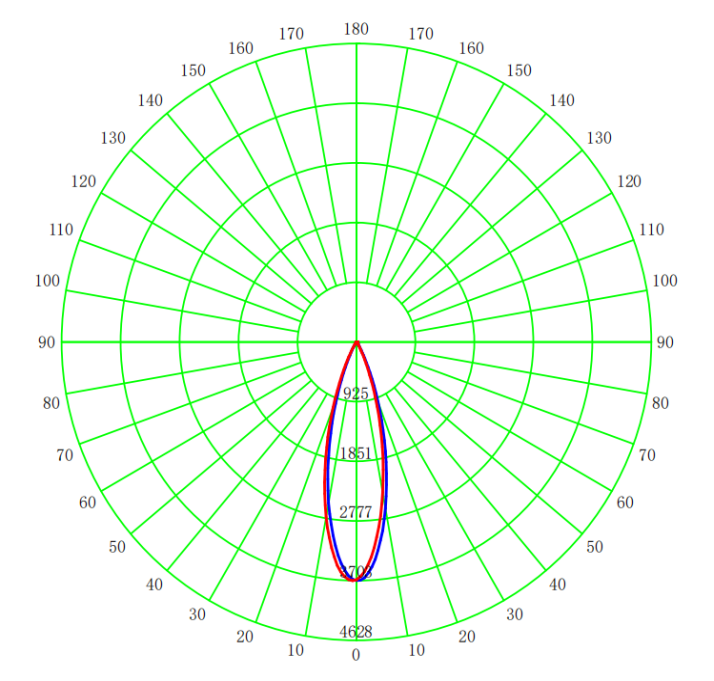

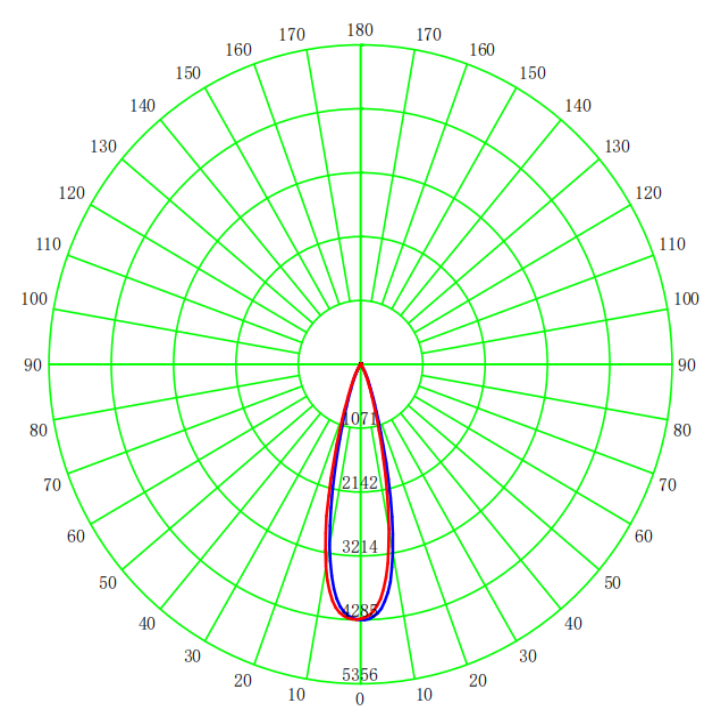

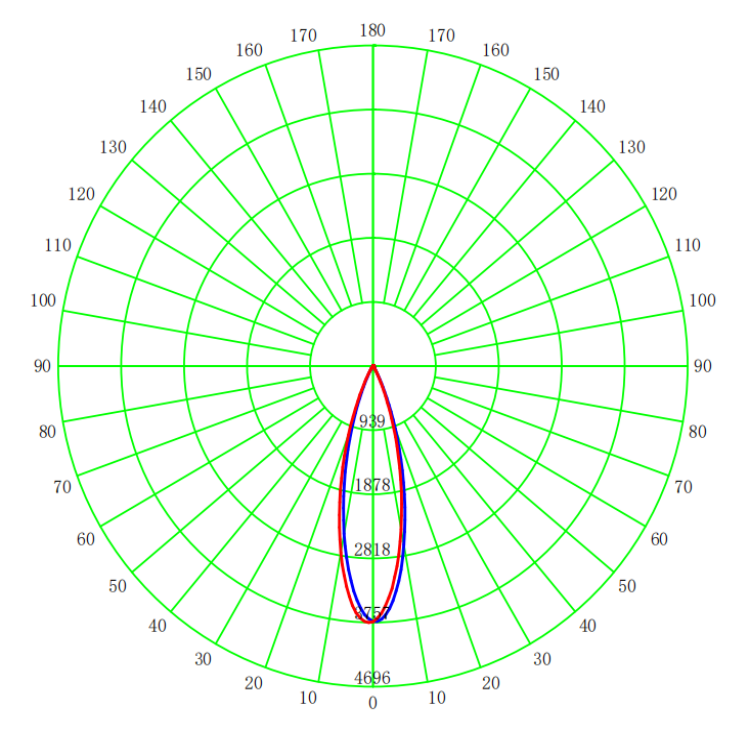

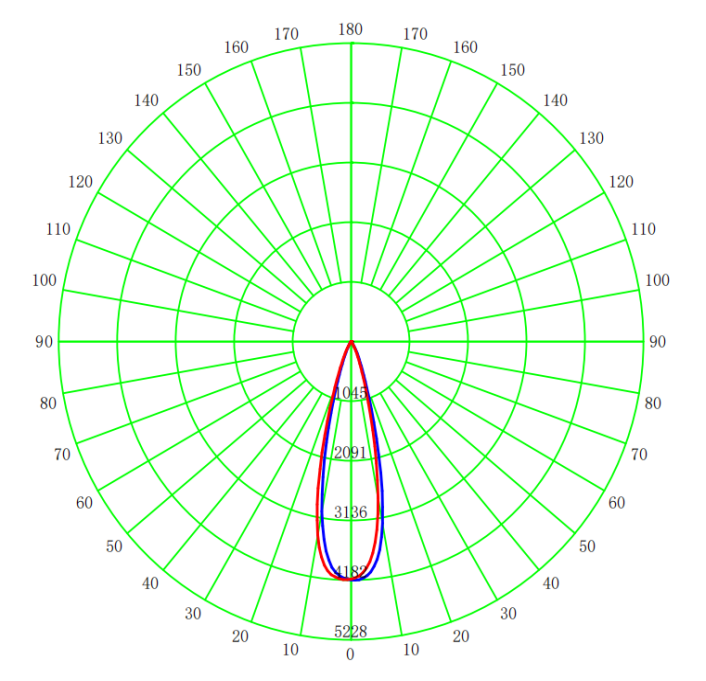

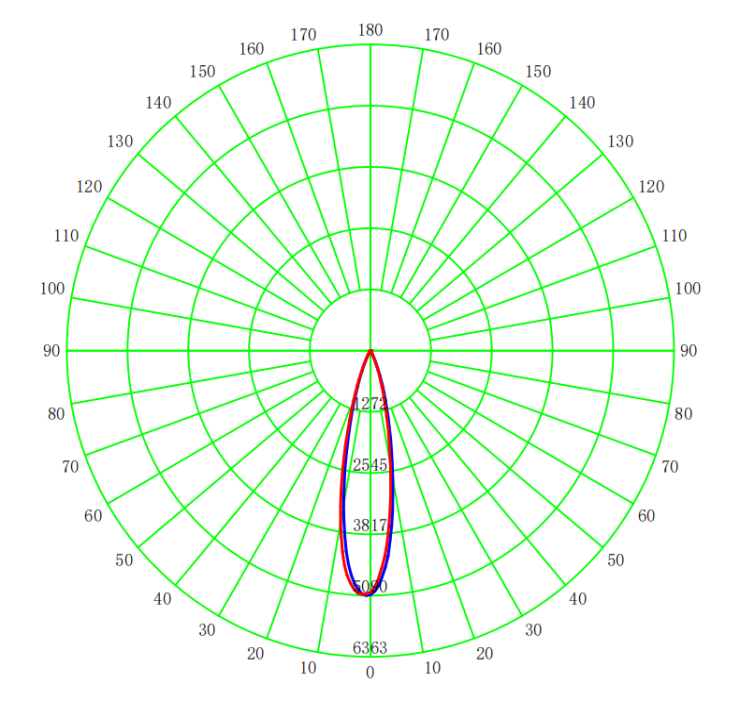

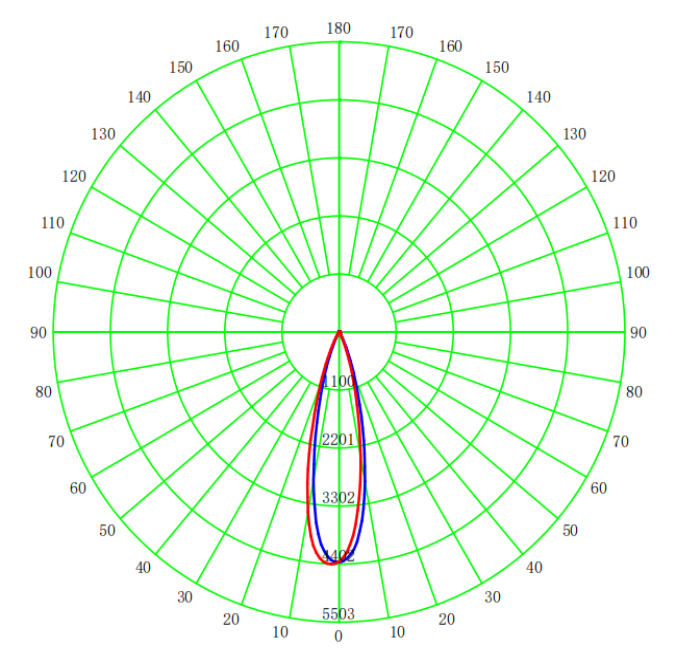

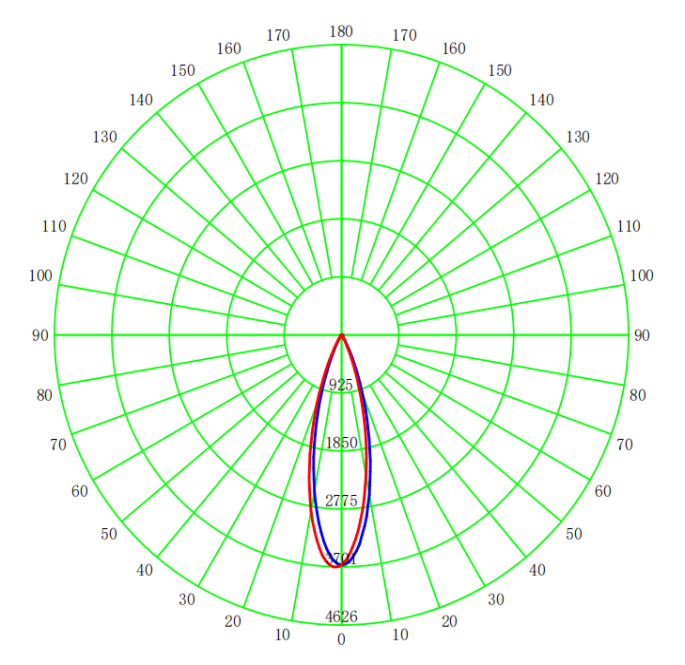

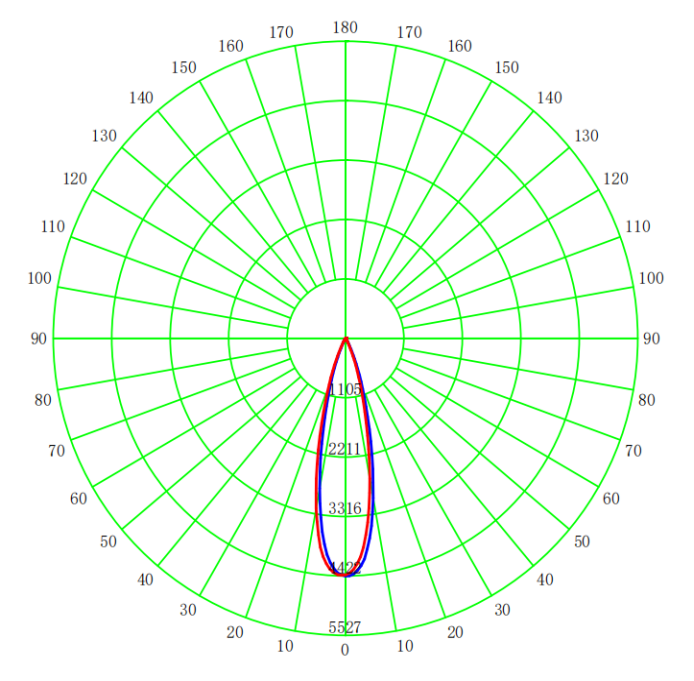

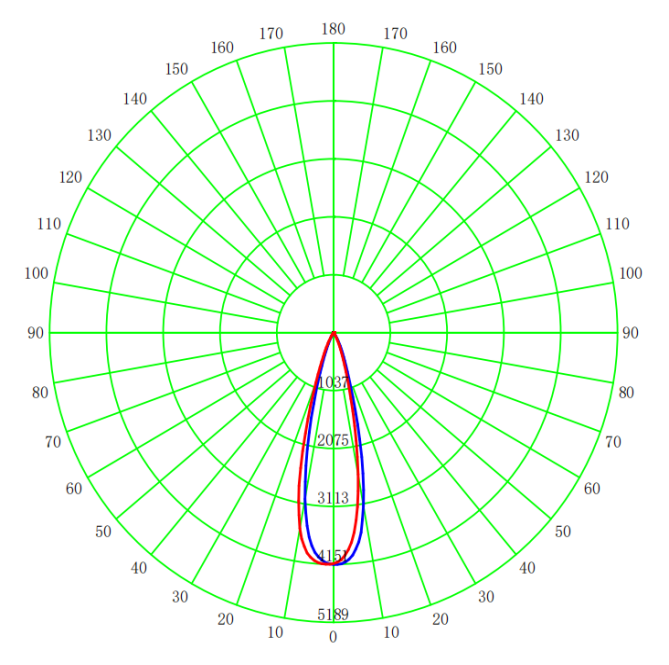

Distribution；LUX Diagram

 2700K CRI≥90
15° 24° 36°



 3000K CRI≥90
15° 24° 36°



 3500K CRI≥90
15° 24° 36°



4000K CRI≥90
15° 24° 36°



Spotlight SH-SS55

Lamp body cover with high purity 6063 aluminum profile, through the hot extrusion process molding, high thermal conductivity, can effectively reduce the LED light decline, prolong the life of the whole lamp.
